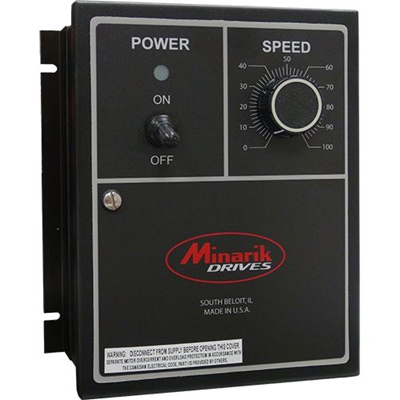

Minarik Drives MM23402D
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Minarik Drives' MM23402D is the latest revision to its most popular line. This SCR, dual voltage (115 or 230VAC) drive comes in a NEMA 4x enclosure and is more resilient to vibration than its predecessor and includes a user-selectable inhibit circuit. Now the user can adjust the function of the inhibit with jumper pins. The MM23402D series drives now comes with LEDs to let the user know when the power is on (green) or if the motor has reached the current limit (red). For applications that require control of a DC motor in the 1/8 to 2 HP range, the MM23402D is an excellent solution.MM2 Series MM23402D MM23000D Series
Minarik Drives MM23402D is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1.37 Form Factor
- 1% Base Speed Regulation
- 601 Speed Range
- Maximum Speed
- Case LEDs
- Power
- Deceleration
- Current Limit
- Diagnostic LEDs
- Power, Current Limit
- Minimum Speed
- Acceleration
- NEMA 4X Enclosure
- Water resistant and dust proof enclosure
- Pre-Wired Switches
- ON/OFF
- Selectable Inhibit
- Inhibit can be set for decel to zero speed or minimum speed
- Stopping Modes
- Inhibit (N.O. or N.C.) for coasting to a stop, can be used for frequent starting and stopping
- Torque Mode
- Can be used for speed control or torque control for tension applications
Specifications
- Braking Type
- null
- Continuous Current
- 10 Amps
- Enclosure
- NEMA 4X
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- null
- Technology Type
- SCR
