Description

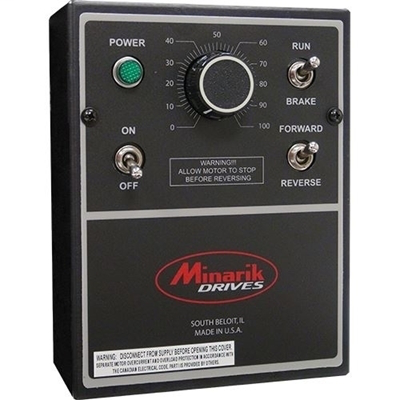

Minarik Drives' MM23202D is the latest revision to its most popular line. This SCR, dual voltage (115 or 230VAC) drive comes in a NEMA 1 enclosure and is more resilient to vibration than its predecessor and comes with another new features, a user-selectable inhibit circuit. Now the user can adjust the function of the inhibit with jumper pins. The MM23202D drive now comes with LEDs to let the user know when the power is on (green) or if the motor has reached the current limit (red). For applications that require control of a DC motor in the 1/8 to 2 HP range, the MM23202D is an excellent solution.MM2 Series MM23202D MM23000D Series
Minarik Drives MM23202D is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1% Base Speed Regulation
- 60:1 Speed Range
- Acceleration
- Deceleration
- Case LEDs
- Power
- Current Limit
- IR Compensation
- Diagnostic LEDs
- Current Limit, Power
- Dynamic Brake Resistor
- Braking the motor to zero speed quicker than coasting
- Maximum Speed
- Minimum Speed
- NEMA 1 Enclosure
- Prevents accidental contact with the circuit board
- ON/OFF, RUN/BRAKE, FORWARD/REVERSE
- 1.37 Form Factor
- Reversing
- Reversing switch swaps armature leads to change motor direction. Motor must be
- stopped before changing direction
- Pre-Wired Switches:
- Torque Mode
- Can be used for speed control or torque control for tension applications
Specifications
- Braking Type
- Dynamic Braking
- Continuous Current
- 10 Amps
- Enclosure
- NEMA 1
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Armature Switching
- Technology Type
- SCR
