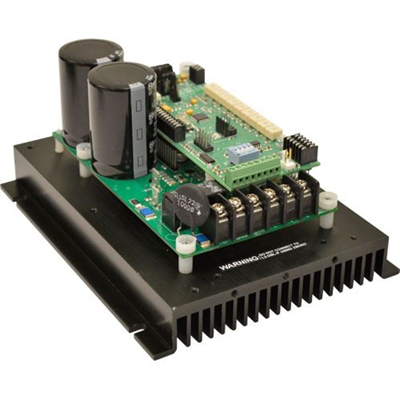

Minarik Drives MDVF05-D230-PCM
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The MDVF Series is the latest offering in a growing list of VFDs from Minarik Drives. Able to control 115 and 230 VAC, single and three phase motors, the MDVF Series is designed to meet the market demands of VFD users who wish to simply run their motors without the complicated menu-driven setup typical of most VFDs today. The onboard microprocessor allows for custom programming for OEMs. Whether it’s as simple as changing the purpose of a jumper, input, or trim pot, to programming entire routines and behaviors specific only to the OEMs application, the MDVF is great for integrating PLC like functionality into your operation. Doing this can eliminate the need of a separate PLC altogether or enhance a system that currently does not have one. The MDVF Series has been tested to the 61800-5-1 Standard and is UL listed in the US and Canada, and includes isolation for remote control from an analog signal.MDV Series MDVF05-D230-PCM MDVF Series
Minarik Drives MDVF05-D230-PCM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- Acceleration
- Deceleration
- Control a variety of motors
- 3-phase induction motors, single-phase permanent split capacitor (PSC), shaded pole, and synchronous motors.
- Diagnostic LED
- LEDs for power and status (undervoltage, overvoltage, short circuit/current trip, overheating warning/trip).
- Doubler mode
- Can double a 115 VAC line to run a 230 VAC motor.
- Dump circuitry
- Internal circuitry for the hookup of an external dump resistor.
- Isolated inputs
- Accepts floating or grounded signals 0 ± 5 VDC, 0 ± 10 VDC or 4-20 mA.
- Microprocessor based
- Allows custom programming for OEM’s.
- Minimum Speed
- Maximum Speed
- Quadrature encoder option
- For OEM applications, the drive can be programmed to follow quadrature encoder feedback without any circuitry changes.
- Slip Compensation
- Brake Current
- Stopping modes
- User can use DC Injection braking, decelerate, or coast the motor to a stop.
- Thermally protects
- Drive recognizes when overheated as a result of overload. It first flashes a warning code on the status LED and will eventually trip if the condition persists.
- Torque
- Voltage Boost
- UL 61800-5-1 Listed
- Tested to the new UL standard to be implemented in 2020.
Specifications
- Braking Type
- DC Injection
- Continuous Current
- 5 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- -5 to 5 VDC, -10 to 10 VDC, 4-20 mA
- Output Voltage
- 115 or 230 VAC
- Reversing Type
- Yes
