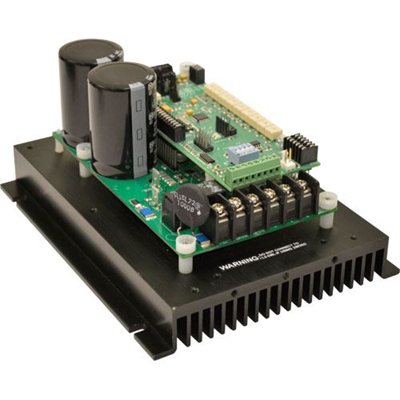

Minarik Drives MDBL05-D230-PCM
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The MDBL Series is a general purpose family of drives for brushless DC (electronically commutated) motors. With either a 115 VAC or 230 VAC line source, our drives can control motors that vary in the 90 to 180 VDC range, up to 5 amps or 1.5 HP. With the use of on-board trim pots, you can quickly set the maximum and minimum speeds, acceleration and deceleration rates, motoring and regening current limits, and the proportional and integral feedback gains. Each drive is designed for feedback from 120° hall effect sensors. The onboard microprocessor allows for custom programming for OEMs. Whether it’s as simple as changing the purpose of a jumper, input, or trim pot, to programming entire routines and behaviors specific only to the OEMs application, the MDBL is great for integrating PLC like functionality into your operation. Doing this can eliminate the need of a separate PLC altogether or enhance a system that currently does not have one. The MDBL Series has been tested to the 61800-5-1 Standard and is UL listed in the US and Canada, and includes isolation for remote control from an analog signal.MDB Series MDBL05-D230-PCM MDBL Series
Minarik Drives MDBL05-D230-PCM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- Deceleration
- Motoring Current Limit
- Diagnostic LEDs
- LEDs for power and status (undervoltage, overvoltage, short circuit/current trip, overheating warning/trip).
- Doubler mode
- Can double a 115 VAC line to a 280 VDC bus output.
- Hall Effect Sensors
- 120°, 5 VDC, 75 mA combined
- Isolated inputs
- Accepts floating or grounded signals 0 ± 5 VDC, 0 ± 10 VDC or 4-20 mA.
- Maximum Speed
- Acceleration
- Microprocessor based
- Allows custom programming for OEM’s.
- Regenerative Current Limit
- Proportional Gain
- Thermally protected
- Drive recognizes when overheated as a result of overload. It first flashes a warning code on the status LED and will eventually trip if the condition persists.
- UL 61800-5-1 Listed
- Tested to the new UL standard to be implemented in 2020.
- Zero Adjust
- Minimum Speed
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 5 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- -5 to 5 VDC, -10 to 10 VDC, 4-20 mA
- Output Voltage
- 0 - 140 / 0 - 280 VDC
- Reversing Type
- Regenerative
- Technology Type
- PWM
