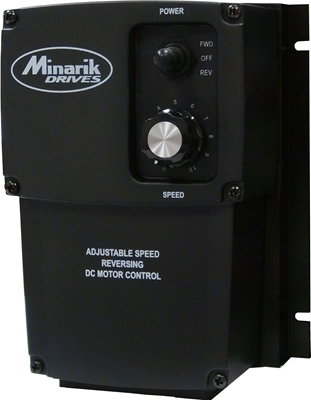

Minarik Drives MC10-R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The MC10-R accepts 115 or 230VAC input for operation of 90 and 180VDC permanent magnet or shunt wound DC motors (50/100/200VDC field voltage) from 1/8 to 2 horsepower. Included are power and current limit LEDs, line fuses, inhibit pins for remote start/stop and mounted on the front cover are a speed potentiometer and On/Off switch. Setup is easy with trimmer pot adjustments for minimum speed, maximum speed, acceleration, deceleration, IR compensation and current limit and a screw terminal block for easy wire connections.MC1 Series MC10-R MC10 Series
Minarik Drives MC10-R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1.37 Form Factor
- 1% Base Speed Regulation
- 601 Speed Range
- Maximum Speed
- Deceleration
- Current Limit
- Diagnostic LEDs
- Current Limit, Power
- Field Supply
- Voltage output to energize the field winding of a shunt-wound motor
- Minimum Speed
- Acceleration
- NEMA 4X Plastic Enclosure
- Plastic corrosion resistant weatherproof enclosure that protects against dirt and splashing
- Pre-Wired Switches
- FORWARD/OFF/REVERSE
- Reversing
- Reversing switch swaps armature leads to change motor direction. Motor must be stopped before changing direction
- Stopping Modes
- Inhibit (N.O) for coasting to a stop. Can be used for frequent starting and stopping
Specifications
- Braking Type
- null
- Continuous Current
- 10 Amps
- Enclosure
- NEMA 4X
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Armature Switching
- Technology Type
- SCR
