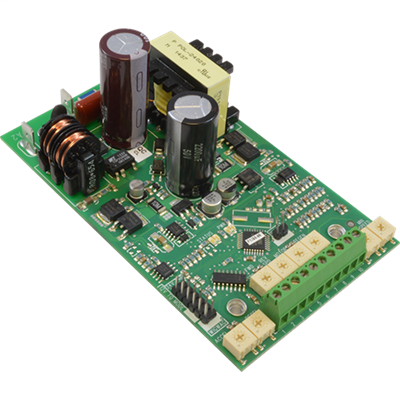

Minarik Drives HTL1.5-D-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HTL Series HTL1.5-D-4Q
Minarik Drives HTL1.5-D-4Q is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- Actuator Control
- The standard HTL drive can be used with actuators. There is also another version of the HTL drive with I/O designed specifically for actuators.
- All in one package
- Switching power supply and DC drive in one package.
- Diagnostics
- LEDs for power and current limit status.
- Easy Calibration
- Trimpot adjustments for FWD ACCEL, REV ACCEL, FWD MAX SPD, REV MAX SPD, FWD CURR LIMIT, REV CURR LIMIT, IR COMP, and MIN SPD.
- Flexibility
- Jumpers for: inhibit personality, wig-wag, analog input range, input voltage and output voltage.
- Four Quadrant
- Reverse and/or brake on the fly.
- Isolation
- Easy interface to a PLC and added safety.
- Microprocessor based
- Custom programming available for OEMs.
- True low voltage output
- Allows use of 115 or 230 VAC supply voltage on 12 or 24 VDC motors.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 1.5 - 3 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- 0-5 VDC
- Output Voltage
- 0 - 12, 0 - 24 VDC
- Peak Current
- 2 - 4 Amps (10 Seconds)
- Reversing Type
- Regenerative
