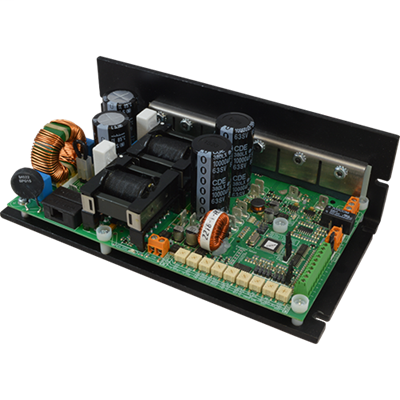

Minarik Drives HTL10-D-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Many customers prefer to use low voltage motors for a variety of reasons. The issue many run into however is that they don’t have a battery source available to run these motors. The solution is to use a power supply, but that isn’t always ideal. Power supplies can be a limiting factor in an application, such as they cannot accommodate regenerative current in a braking or reversing application. The HTL10-D-4Q addresses this issue by combining an AC to DC switching power supply with a regenerative PWM drive, creating an all-in-one solution to applications requiring control of 12 to 48 VDC motors when only 115 or 230 VAC power is available. The true lower output voltage will run your motor cooler and prolong brush life. The HTL10-D-4Q is capable of speed or torque control, as well as cycling and positioning control when used with limit switches or resistive feedback devices. However, the microprocessor allows the drive to be programmed for custom applications or routines to meet OEMs requirements and the built-in isolation keeps PLC interfacing safe and simple. The HTL10-D-4Q is perfect for those needing a wide range of low voltage control with quick braking or on-the-fly reversing when only AC line power is available.HTL Series HTL10-D-4Q
Minarik Drives HTL10-D-4Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1.05 Form Factor
- 1% Base Speed Regulation
- 4Q Reversing
- Regenerative / 4-Quadrant drives have the ability to perform quick and contactorless braking and/or reversing-on-the-fly
- Alarm Output
- N.O. and N.C. contacts for an alarm output
- All-in-One Package
- Combines a custom regen-capable switching power supply with low voltage drive
- Braking Coil Output
- Contact that can be used to power an external brake coil
- Diagnostic LEDs
- Power, Current Limit, Fault Status
- Dynamic Brake Output
- Built-in circuitry to divert regenerative current to dump resistor for quicker braking than most PWM drives
- Isolated Logic
- Allows floating or grounded 0 - 5 or 0 - 10 VDC signals
- Microprocessor Based
- Allows custom programming for OEMs
- Modes of Operation
- Speed, Torque, Cycling, Positioning
- Stopping Modes
- Forward and reverse inhibits can be set for N.O. or N.C. to brake to a stop. Can be used for rapid starting and stopping
- True Low Voltage Output
- Allows control over low voltage motors without the negative effects of current spikes or a large BUS voltage associated with typical 115/230 VAC SCR and PWM controls
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 5 - 20 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- -5 to 5 VDC, -10 to 10 VDC, 4-20 mA
- Output Voltage
- 0 - 12, 0 - 24, 0 - 36, 0 - 48 VDC
- Peak Current
- 7.5 - 30 Amps (10 Seconds)
- Reversing Type
- Regenerative
