Description

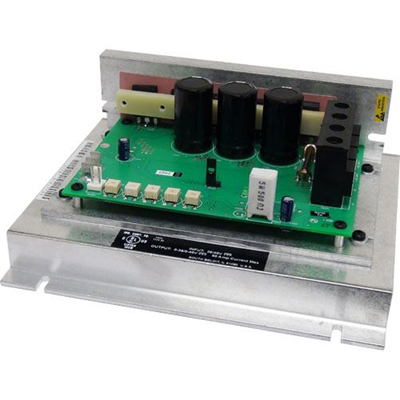

The DC60-36/48 PWM drive was designed for applications running from a DC power supply or DC battery power. This drive provides continuous current ratings and higher bus capacitance (to better handle ripple currents) than competitive units. The DC60-36/48 is ideal for many types of portable equipment, especially battery-powered equipment due to its ability to maintain variable speed control as the battery discharges. This results in an overall increase in running time of the equipment. With a 150% overload capacity, an inhibit function for remote starting and stopping, a power LED and non-interactive trimmer pots, the DC60-36/48 stands out among the many DC input drive options.DC6 Series DC60-36/48 DC-1Q Series
Minarik Drives DC60-36/48 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- Additional features
- Inhibit terminals (P/N 201-0024 for plug assembly), extruded chassis and non-interactive trimmer pots.
- DC input voltage
- Accepts DC input and outputs DC voltage up to 95% of the input with near perfect form factor.
- Diagnostic LEDs
- Power.Stopping modes: The user can coast the motor to a stop (N.O.).
- Low voltage motor operation
- Designed for 12, 24, 36 and 48VDC motors.
- One drive for two motor voltages
- On board jumper to select 12 or 24VDC motor (36 or 48VDC on some models).
- Spade terminals and screw terminal block
- Quick and easy connections.
- Speed range and regulation
- 1% regulation over 80:1 speed range.
- User adjustable calibration pots
- IR compensation, max speed, min speed, acceleration and current limit.
Specifications
- Braking Type
- null
- Continuous Current
- 60 Amps
- Enclosure
- Chassis
- Input Voltage
- 36 / 48 VDC
- Isolation
- null
- Output Voltage
- 0 - 36 / 0 - 48 VDC
- Peak Current
- 60 Amps
- Reversing Type
- null
- Technology Type
- PWM
