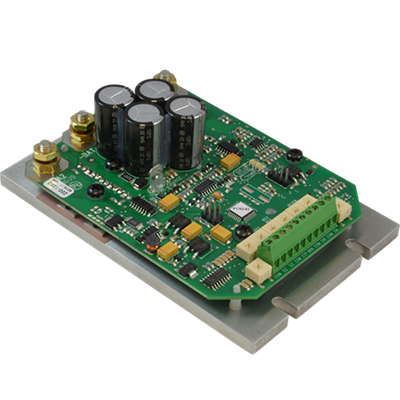

Minarik Drives DC60-12/24-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The DC60-12/24-4Q is a microprocessor based, low voltage PWM drive for brushed DC motors up to 24 VDC, rated for 30 amps continuous operation or 60 amps for one minute. They are regenerative controls capable of braking or reversing on-the-fly without the use of braking resistors or motor lead swapping. The drives are equipped with a brake output that can be used to power electro-mechanical brake or an external run status LED. There are two on-board LEDs that are used to communicate run status and fault conditions, while jumpers are used to select between Speed or Torque mode operation as well as unidirectional or bidirectional control with a 0 – 5 VDC analog signal. Protective circuitry helps shield the drive from shorts on the armature output and a pre-charge circuit limits in-rush current to protect the power contacts. The microprocessor allows for custom programming to fit various OEMs custom needs, potentially eliminating the need for a PLC and supporting devices. As an example, drives can be programmed for use in the field without trim pots, saving the customer time and money on installation, calibration, and field support.DC6 Series DC60-12/24-4Q DC60-4Q Series
Minarik Drives DC60-12/24-4Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 100% Duty Cycle
- Drive has capability of outputting 100% of battery voltage.
- 4Q reversing
- Regenerative/ 4 Quadrant drives have the ability to perform quick and contactorless braking and/or reversing on the fly!
- Brake Output
- Applies a voltage out to a brake coil when the drive is disabled or stopped.
- Diagnostic LEDs
- Power, current limit, over voltage, under voltage, and overheat foldback.
- High Efficiency
- Outputs up to 100% of the input voltage.
- Low Voltage motor operation
- Designed for 12 and 24 VDC motors.
- Microprocessor based
- Allows for special calibration ranges or custom I/O for OEMs. Ask about custom programming for positioning, cycling, and torque control applications.
- RoHS
- All DC6-4Q and DC20-4Q series models are RoHS compliant.
- Speed range, regulation, & form factor
- 1% of base speed regulation with 80:1 speed range and a 1.01 form factor over the entire range.
- Stopping modes
- Brake or coast to a stop.
- User adjustable calibration
- Minimum Speed, Forward Maximum Speed, Reverse Maximum Speed, Motor Current Limit, Regen Current Limit, Acceleration, Deceleration, IR Comp.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 30 Amps
- Enclosure
- Chassis
- Input Voltage
- 12 / 24 VDC
- Isolation
- null
- Output Voltage
- 0 - 12 / 0 - 24 VDC
- Peak Current
- 60 Amps (1 Minute)
- Reversing Type
- Regenerative
- Technology Type
- PWM
