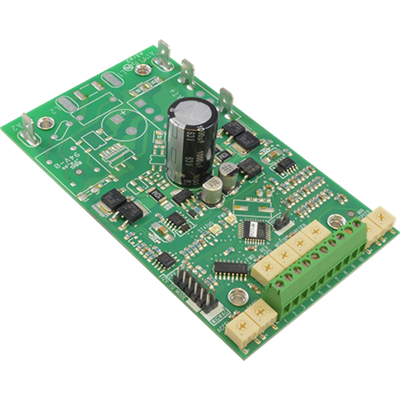

Minarik Drives DC6-36/48-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The DC-4Q series are microprocessor based, low voltage PWM drives that are capable of braking and reversing regeneratively. The microprocessor allows for custom programming to fit any OEMs custom needs, sometimes eliminating the need for a PLC and/or sensors. They can even be programmed for use in the field without trimmer potentiometers, creating a simple install and a level of security for OEMs. Some models contain a “sleep mode” which extends battery life, and some contain a Fault LED with a built in flashing code for under voltage, over voltage, current limit, overheat, and short circuit. With features like pre-charge circuits, brake outputs, directionally based inhibits, you’re sure to find a drive to fit your needs.DC6 Series DC6-36/48-4Q DC-4Q Series
Minarik Drives DC6-36/48-4Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 10001 Speed Range
- Forward Maximum Speed
- 1.01 Form Factor
- 1% Base Speed Regulation
- 4Q Reversing
- Regenerative / 4-Quadrant drives have the ability to perform quick and contactorless braking and/or reversing-on-the-fly
- Acceleration
- Deceleration
- Diagnostic LEDs
- Power, Status(Current Limit, Undervoltage, Overvoltage, Overheat Foldback)
- High Efficiency
- Outputs up to 95% of the input voltage
- Ideal for Battery Powered Equipment
- Maintains both set and/or variable speed even as battery voltage declines. Extends total running time of equipment
- Microprocessor Based
- Allows custom programming for OEMs
- Motor Current Limit
- Regen Current Limit
- Reverse Maximum Speed
- Minimum Speed
- Stopping Modes
- N.C. forward and reverse inhibits brake to a stop. Can be used for rapid starting and stopping
- Wig-Wag Mode
- Allows for bidirectional control of the motor with a unidirectional signal
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 3 Amps
- Enclosure
- Chassis
- Input Voltage
- 36 / 48 VDC
- Isolation
- null
- Output Voltage
- 0 - 36 / 0 - 48 VDC
- Peak Current
- 6 Amps (1 Minute)
- Reversing Type
- Regenerative
- Technology Type
- PWM
