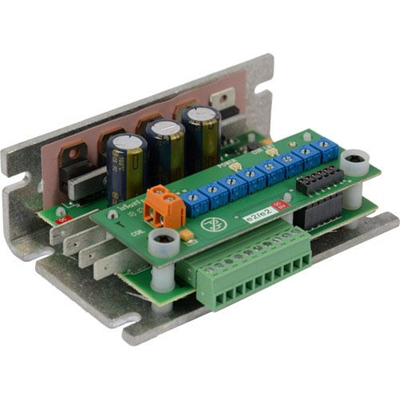

Minarik Drives DC30-12/24-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DC3 Series DC30-12/24-4Q DC-4Q Series
Minarik Drives DC30-12/24-4Q is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q reversing
- Regenerative/ 4 Quadrant drives have the ability to perform quick and contactorless braking and/or reversing on the fly!
- Brake Output
- Applies a voltage out to a brake coil when the drive is disabled or stopped.
- Diagnostic LEDs
- Power, current limit, over voltage, under voltage, and overheat foldback.
- High Efficiency
- Outputs up to 95% of the input voltage.
- Ideal for battery powered equipment
- Maintains both set and/or variable speed even as battery coltage declines. Extends total running time of equipment.
- L Option
- Allows the drive to work with actuators containing a linear pot.
- Low Voltage motor operation
- Designed for 12 and 24 VDC motors.
- Microprocessor based
- Allows for special calibration ranges or custom I/O for OEMs.
- RoHS
- All DC30-12/24-4Q series models are RoHS compliant.
- Speed range, regulation, & form factor
- 1% of base speed regulation with 100:1 speed range and a 1.01 form factor over the entire range.
- Stopping modes
- Brake or coast to a stop.
- User adjustable calibration
- Minimum Speed, Forward Maximum Speed, Reverse Maximum Speed, Motor Current Limit, Regen Current Limit, Acceleration, Deceleration, IR Comp.
- W Option
- Allows for bidirectional control with a unidirectional signal.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 15 Amps
- Enclosure
- Chassis
- Input Voltage
- 12 / 24 VDC
- Isolation
- null
- Output Voltage
- 0 - 12 / 0 - 24 VDC
- Peak Current
- 30 Amps (1 Minute)
- Reversing Type
- Regenerative
- Technology Type
- PWM
