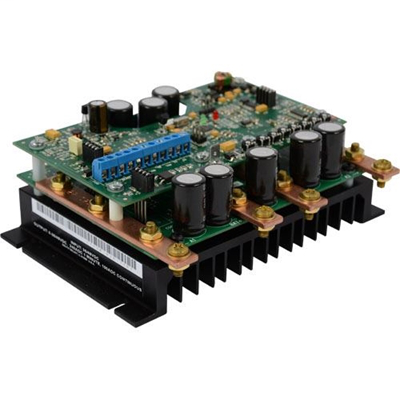

Minarik Drives DC240-36/48-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The DC-4Q series of drives are DC in/DC out PWM chassis drives capable of four quadrant reversing and braking. This series of drives is ideal for portable battery powered equipment. The DC-4Q has the ability to maintain variable speed even as battery decreases and has a sleep mode for extended battery life while not in use. The four quadrant capability allows simple connections for fast reversing and/or braking without the need for bulky contactors or braking resistors. The 1.01 form factor produces clean DC output for efficient and quiet motor operation. Like all Minarik Drives products, these units are built in the USA. The DC-4Q series of drives have adjustments for IR Compensation, Motoring Current Limit, Regenerative Current Limit, Forward Max Speed, Reverse Max Speed, Min Speed, Deceleration and Acceleration Time. These drives are microprocessor based meaning these ranges can be reprogrammed to meet any custom needs. The DC-4Q series also has Power and Fault LEDs, including current limit, under voltage, overheat and short circuit. The DC-4Q is available in two models, one for 12-24V systems, the other is designed for 36-48V systems. For simplicity and safety, no jumpers or switches are required for selecting voltages.DC2 Series DC240-36/48-4Q DC-4Q Series
Minarik Drives DC240-36/48-4Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1.01 Form Factor
- Clean DC output for efficient and quiet motor operation at a 16 kHz PWM frequency.
- Fan Accessory
- Optional field install-able fan kit increases continuous current rating at 160 Amps.
- Four Quadrant Control
- Simple reversing and braking via a switch closure to the drive.
- High Continuous Current
- Up to 120 Amps continuous, robust bus bars used to handle the current.
- Inhibit Circuit
- Convenient for remote starting and stopping.
- LED Outputs
- Power, Current Limit, Under Voltage, Over Voltage, Overheat and Short Circuit.
- Max One Min. Peak Current
- 240 Amps.
- On Board Calibration
- Calibrate using on board non-interactive trimmer pots, no programming or additional accessories are needed.
- Output 100% of DC Input
- Compared to 90% output of similar units on the market.
- Precharge Circuit
- Optional contactor can be used to provide soft starts and protection against runaway.
- Short Circuit Protection
- Unit protects itself against a shorted motor.
- Sleep Mode
- Extended battery life.
- Temperature Sensor
- Current limit automatically reduced if controller heats up.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 100 Amps
- Enclosure
- Chassis
- Input Voltage
- 36 / 48 VDC
- Isolation
- null
- Output Voltage
- 0 - 36 / 0 - 48 VDC
- Peak Current
- 240 Amps (1 Minute)
- Reversing Type
- Regenerative
- Technology Type
- PWM
