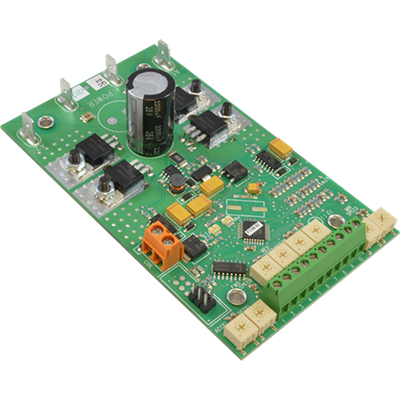

Minarik Drives DC20-12/24-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Minarik Drives DC20-12/24-4Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q reversing
- Regenerative/ 4 Quadrant drives have the ability to perform quick and contactorless braking and/or reversing on the fly!
- Diagnostic LEDs
- Power, current limit, over voltage, under voltage, and overheat foldback allows quick turnaround for custom units.
- High Efficiency
- Outputs up to 95% of the input voltage.
- Low Voltage motor operation
- Designed for 12 and 24 VDC motors.
- Microprocessor based
- Allows for special calibration ranges or custom I/O for OEMs. DC6-12/24-4Q allows for unidirectional or bidirectional; control with the unidirectional signal. Ask about custom programming for positioning cycling, Deceleration, IR Comp.
- RoHS
- All DC6-4Q and DC20-4Q series models are RoHS compliant.
- Speed range, regulation, & form factor
- 1% of base speed regulation with 80:1 speed range and a 1.01 form factor over the entire range.
- Stopping modes
- Brake or coast to a stop.
- User adjustable calibration
- Minimum Speed, Forward Maximum Speed, Reverse Maximum Speed, Motor Current Limit, Regen Current Limit, Acceleration, Deceleration, IR Comp.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 10 Amps
- Enclosure
- Chassis
- Input Voltage
- 12 / 24 VDC
- Isolation
- null
- Output Voltage
- 0 - 12 / 0 - 24 VDC
- Peak Current
- 20 Amps (1 Minute)
- Reversing Type
- Regenerative
- Technology Type
- PWM
