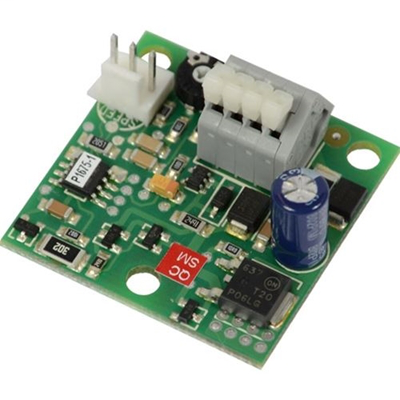

Minarik Drives DC1.5-12

Features

• -0964
  • Spec models ending in -0964 allow for the connection of a remote speed potentiometer, replacing the SPEED trim pot on the board.
• Cage clamp terminal block
  • Quick and easy wire terminations reduce installation time
• Compact footprint
  • Fits in places where you never though a drive could. Custom round PCB's are available to mount directly on the back of a motor
• Current Limit
  • Limits the torque so gears are not stripped in an overhead situation.
• Ideal for battery powered equipment
  • Maintains both set and/or variable speed control even as battery voltage declines. Extends total running time of equipment.
• Low Voltage motor operation
  • Designed for 12 and 24 VDC motors.
• Microprocessor based design
  • Allows quick turnaround for custom units.
• Reverse polarity protection
  • The drive is not damaged when connected to the battery or power supply backwards.
• RoHS
  • Models DC1.5-12, DC1.5-24, DC2.0-12 and DC6-12/24 are RoHS compliant.
• User adjustable calibration pots
  • Speed and Current Limit.

Specifications

• Braking Type
  • null
• Continuous Current
  • 1 Amp
• Enclosure
  • Chassis
• Input Voltage
  • 12 VDC
• Isolation
  • null
• Output Voltage
  • 0 - 12 VDC
• Peak Current
  • 1.5 Amps (1 Minute)
• Reversing Type
  • null
• Technology Type
  • PWM
