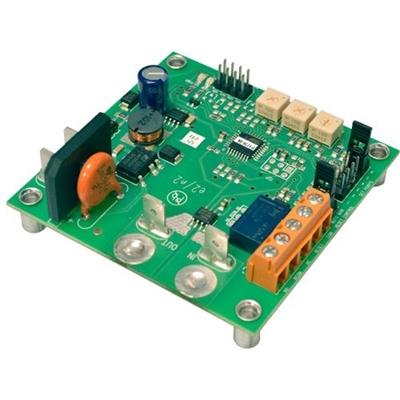

Minarik Drives CSC1-5
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The CSC1 series is a stand-alone accessory card that can provide a current limit alarm. Compatible with any DC motor controller, the card is wired in series with a DC motor. Using a jumper to set a base current limit trip point, an on-board OFFSET trim pot can be used to finely adjust the trip point. A TIME DELAY trim pot can be used to determine how long the motor’s amperage draw must be above the trip point before determining it’s truly a fault scenario. This prevents false alarms from startup draws and momentary surges. When the card determines it’s a trip, it will toggle a N.O. output closed and another N.C. output open. These contacts are to be used as switches to turn on or off other circuits, such as LEDs, relays, or speakers. The card can be set to stay tripped or can be set to automatically reset (un-trip) once current falls below an adjustable HYSTERESIS setting. This feature rich current sensing module is a valuable tool in new and existing systems where an added level of monitoring and protection is required.CSC Series CSC1-5 Current Monitoring Cards
Minarik Drives CSC1-5 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- Diagnostic LEDs
- Over Current / Power, Trip
- Hysteresis
- Time Delay
- Maximum Relay Current 0.5 amps @ 120 VAC, 1.0 amp @ 30 VDC
- Offset
- OFFSET Range 50% - 150% of set point
- HYSTERESIS Range: 50% - 98% of set point
- Set Points
- 0.25, 0.5, 1, 2, 3, 4 amps
- TIME DELAY Range 0.2 to 15 seconds
- Maximum Relay Voltage: 125 VAC, 110 VDC
- Versatile
- Can be used with any DC motor control.
Specifications
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Peak Current
- 5 Amps
