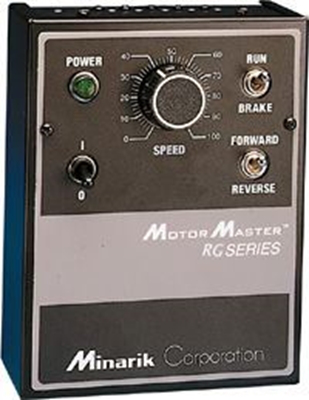

Minarik Drives C1RGD10-D230AC





Description
Minarik Drives C1RGD10-D230AC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- Diagnostic LEDs
- Power On light on front of enclosure, LEDs inside cover for power, forward and reverse direction and forward and reverse current limit.
- NEMA 1 enclosure
- Metal enclosure for indoor use protects against dirt, dust and bodily contact.
- Speed range and regulation
- 1% regulation over 50:1 speed range. 0.1% regulation over 60:1 speed range with the addition of a tachometer for feedback. Armature or tachometer mode is switch selectable.
- Stopping Modes
- User can regeneratively brake (run/brake switch), coast to a stop (power on/off switch) or decelerate to zero via internal jumper.
- User adjustable calibration pots
- IR compensation, min speed, max speed, forward and reverse torque, forward and reverse acceleration and tachometer.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 10 Amps
- Enclosure
- NEMA 1
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Regenerative
