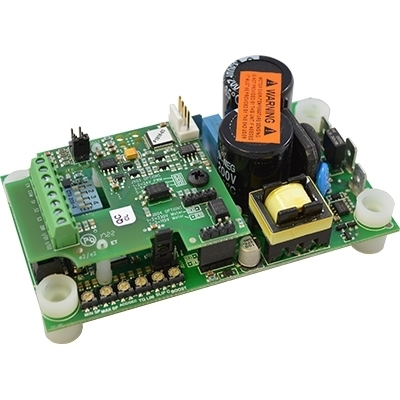

Minarik Drives ACF704-0.65-00MD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The ACF series is a microprocessor based variable frequency drive. The user adjustable trim pots allow the user to setup the drive similar to a DC motor control, meaning quick and easy installation without any of the programming typically associated with VFDs. The ACF704-0.65-00MD model includes an isolation card for remote control with any ACF series drives control 115 or 230 VAC motors, single or three phase, with either a 115 or 230 VAC single phase input. This is because the ACF drive is equipped with a voltage doubling capability that allows you to run a 230 VAC motor when only a 115 VAC single phase power is available. The drive’s internal carrier frequency can easily be changed from 16kHz to 1.6kHz to minimize switching losses or reduce electrical interference. Stopping methods include coast to stop or DC injection braking. Incorporated into the design is a microprocessor which provides flexibility of creating custom programs that can include specific user setting for OEM applications. These full featured and compact AC drives are the perfect choice to run any 3 phase and some single phase motors.ACF Series ACF704-0.65-00MD Next-Gen
Minarik Drives ACF704-0.65-00MD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 2 or 12 kHz Carrier Frequency
- Maximum Speed
- Adjustable Base Frequency
- Can be set for a base output frequency of 50 or 60 Hz at rated output voltage, regardless of input frequency
- DC Injection Braking
- Fixed 30 VDC for 2 seconds injection for quicker braking
- Diagnostic LEDs
- Power, Status (Undervoltage, Overvoltage, Short Circuit / Current Trip, Overheat Warning, Overheat Trip)
- Doubler / Stop-Down Mode
- Doubles a 115 VAC input to a 230 VAC output. Can also step-down a 230 VAC input to a 115 VAC output at 50/60 Hz
- Isolation
- Isolation adder board allows for control via 0-5 VDC, 0-10 VDC, or a 24V 1 kHz PWM signal
- Microprocessor Based
- Allows custom programming for OEMs
- Minimum Speed
- Acceleration / Deceleration
- MM Footprint and Compact Size
- Traditional MM mounting pattern with smaller footprint uses minimal space
- Modus Communication
- Modbus RTU over RS485.
- Thermally Protects
- Drive recognizes when overheated as a result of frequent overload. It first flashes a warning code and will trip if condition persists
- Torque
- Boost
- Variety of Motors
- Permanent Split Capacitor (PSC), Shaded Pole, Synchronous, and 3Ø Induction
Specifications
- Braking Type
- DC Injection
- Continuous Current
- 0.65 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- 0-5 VDC, 0-10 VDC, 24V 1 kHz PWM, Modbus
- Output Voltage
- 115 or 230 VAC
- Reversing Type
- Yes
