Mersen Z330026
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

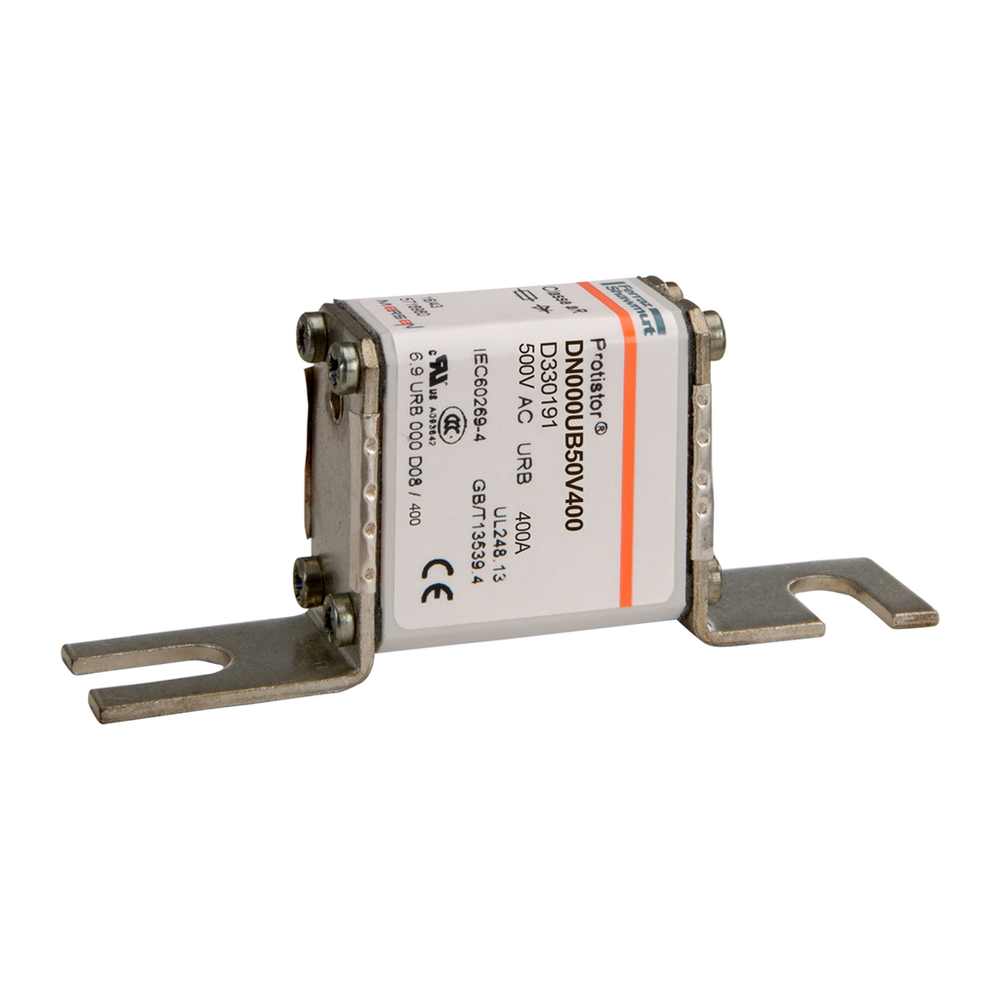

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.Size 000 DIN80, vertical body, with indicator aR 160 A 690VAC
Mersen Z330026 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Max I R Breaking Capacity I1
- 200 kA
- Ampere Rating
- 160 A
- Body Insulating Material
- Ceramic
- Clearing I2T At Rated Voltage
- 16000 A²s
- Connection Terminal Material
- Silver-Plated Copper
- Connection Terminal Type
- DIN Type Blades
- Country Of Origin
- TN
- Fuse Size
- NH000
- Melting I2T
- 2680 A²s
- Mounting
- Bolted
- Power Dissipation At Rated Current Value
- 31 W
- Product Brand
- Protistor®
- Product Line
- Protistor® size 000/00 aR, 500 to 690VAC (IEC) / 700VAC (UL)
- Rated Voltage Ac Iec
- 690 V
- Speed Characteristic
- aR
