Mersen Z1045211
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

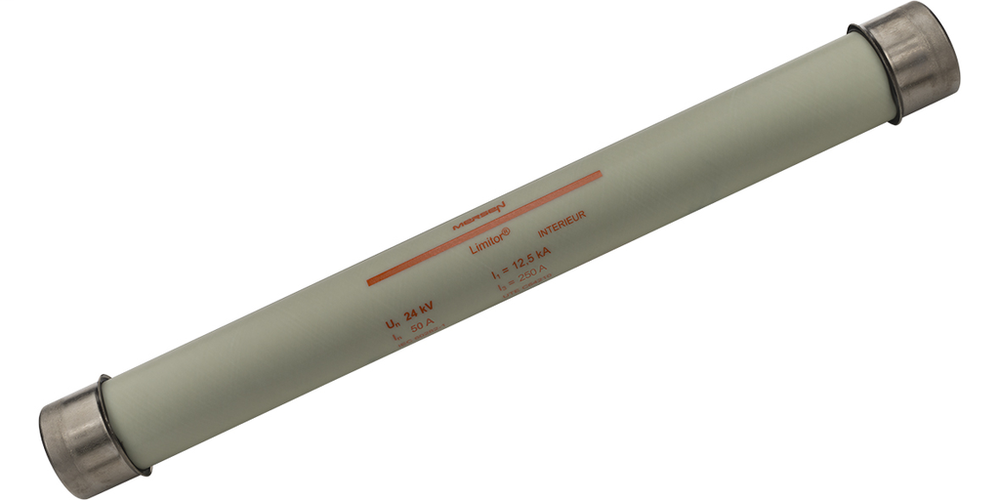

FR-type fuses are designed to protect HV/LV power distribution transformers. Designed to be coordinated with other equipment, these current limiting fuse-links interrupt fault currents before they reach their peak. The fault current is interrupted inside the fuse-link body and although this is very fast, there is no sign of it outside. The 24kV fuses were specially designed with very low power losses, for use in SF6-insulated or compact air-insulated fused switchgear combinations The main elements in these fuses are a barrel of class F insulating synthetic material, nickel plated aluminium end contacts, pure silver fuse elements and a composite material fuse element holder to withstand high temperatures. Thanks to their structure, based on a synthetic material, FR fuse-links are the perfect answer to the stress involved in use inside HV bays and fuse-link chambers.Low power loss fuse M.V24kV 50A for transformer UTE 55mm 520mm w/o striker
Mersen Z1045211 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Max I R Breaking Capacity I1
- 12.5 kA
- Ac Min Interrupting Rating Mbc
- 250 A
- Ampere Rating
- 50 A
- Average type striker
- force 1 ±0.5 Joules
- Body Insulating Material
- Class F insulating synthetic material
- Clearing I2T At Rated Voltage
- 39.3 kA²s
- Connection Terminal Material
- Nickel-Plated Aluminum
- Connection Terminal Type
- Cylindrical
- Country Of Origin
- FR,HU
- Fuse Size
- d=55mm, L=520mm
- Mounting
- Clip
- Power Dissipation At Rated Current Value
- 91 W
- Product Brand
- Limitor®
- Product Diameter
- 2.17 in
- Product Line
- Limitor® - NF/UTE Back-up Fuses, 7,2kV to 24kV - Type FR
- Rated Voltage Ac Iec
- 24 kV
