Mersen Z1023131
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

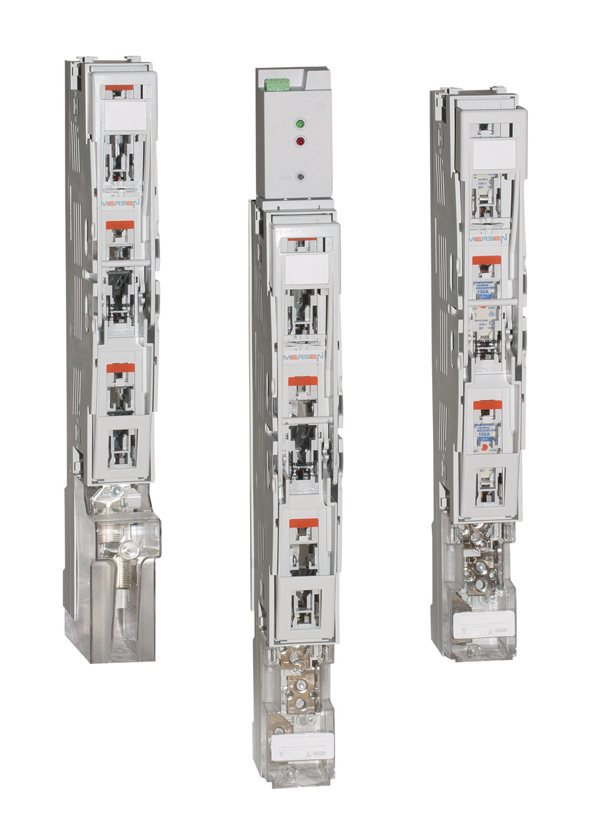

MULTIVERT® NH vertical fuse switch disconnectors meet all functions of NH fuse switch disconnectors. They are designed for installation on to bus bars in triple pole arrangements. MULTIVERT® 160A triple pole switching are for installation on to 100 mm and 185 mm bus bar systems. MULTIVERT® 160A are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00 160A. The system is a modular system, that allows the installation of individual components. MULTIVERT® offer the user the possibility of fast and easy installation as well as a high degree of protection during installation and maintenance.MULTIVERT 160A/100mm, 3-pole switching terminal: AI / Cu clamps
Mersen Z1023131 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Conventional Free Air Thermal Current - Solid Links
- 250 A
- Conventional Free Air Thermal Current With Fuse-Links Ith
- 160 A
- Country Of Origin
- CZ
- Frequency Hz
- 50 ... 60 Hz
- Fuse Size
- 00
- Installation Mounting
- Bus bar system 100 mm
- Max Power Dissipation Of Fuse Links Pn
- 12 W
- Max Power Dissipation Of Solid Links Pn
- 1.2 W
- Number Of Poles
- 3-Pole
- Power Dissipation By Ith Without Fuse-Links
- 18 W
- Power Dissipation Without Solid Links
- 44 W
- Product Brand
- MULTIVERT®
- Product Line
- MULTIVERT® 160A, Size 00, 690VAC, Triple Pole Switching
- Rated Impulse Withstand Voltage
- 8 kV
- Rated Insulation Voltage
- 1000 V
- Rated Sc Withstand
- 4.5 kA / 1 s
- Rated Short Circuit Making Capacity With Solid Links Icm
- 4.5 kA
- Rated Voltage Ac Iec
- 690 V
- Short Circuit Current Rating Sccr
- 80kA@Ue = AC 400 V; Ie = 160 A / 80kA@Ue = AC 500 V; Ie = 160 A / 50kA@Ue = AC 690 V; Ie = 100 A
- Switchability
- 1 x triple pole
- Utilization Category
- AC 23 B @ Ue = AC 400 V; Ie = 160 A
- Utilization Category 2
- AC 22 B @ Ue = AC 500 V; Ie = 160 A
- Utilization Category 3
- AC 22 B @ Ue = AC 690 V; Ie = 100 A
- Varieties of cable termination
- screw, clamp strap, AlCu clamp, frame clamp, V-terminal
