Mersen Z1023085
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

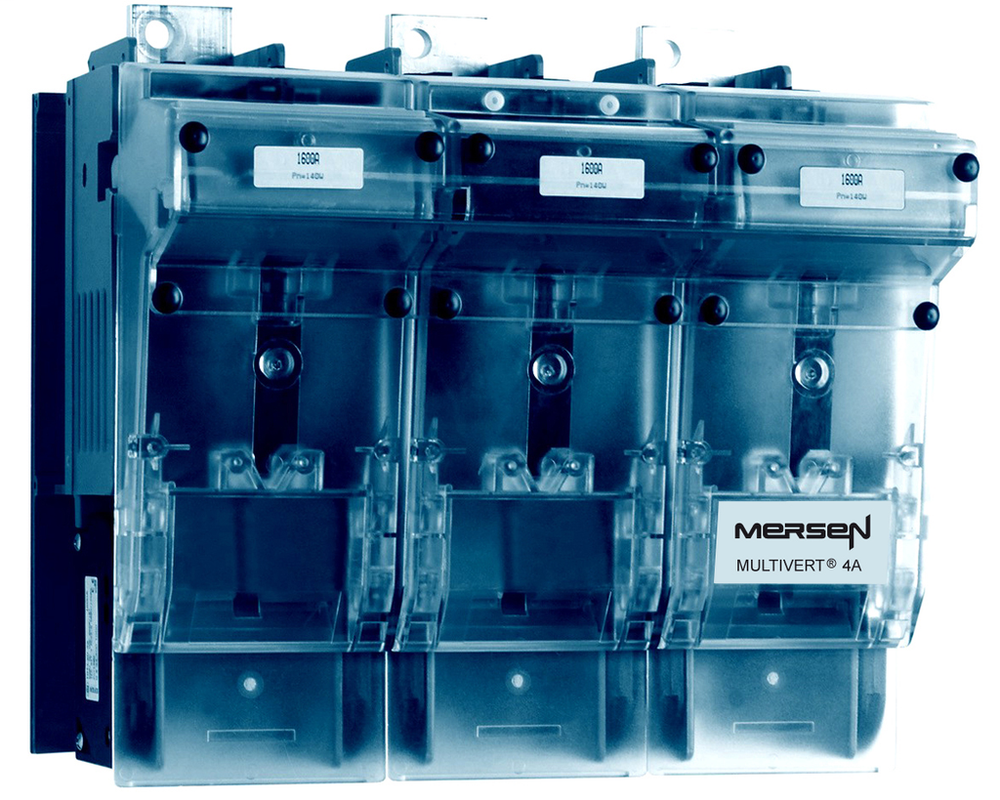

The production programme of MULTIBLOC® series 4a.ST8 - 1600 A comprises NH fuse switch disconnectors for 1600A. They are designed for bottom fitting/panel installation and are available in single pole and triple pole units. MULTIBLOC® size 4a are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 4a. MULTIBLOC® offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.MULTIBLOC size 4a / 1600A, 3-pole 2 x M12 terminal screws C.T.150A class1
Mersen Z1023085 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Conventional Free Air Thermal Current - Solid Links
- 1800 A
- Conventional Free Air Thermal Current With Fuse-Links Ith
- 1600 A
- Country Of Origin
- DE
- Frequency Hz
- 50 ... 60 Hz Hz
- Fuse Size
- 4a
- Installation Mounting
- Bottom Fitting/panel
- Max Power Dissipation Of Fuse Links Pn
- 140 W
- Max Power Dissipation Of Solid Links Pn
- 42 W
- Number Of Poles
- 3-Pole
- Power Dissipation By Ith Without Fuse-Links
- 270 W
- Power Dissipation Without Solid Links
- 270 W
- Product Brand
- MULTIBLOC®
- Product Line
- MULTIBLOC® 4a.ST8 , Size 4a, 690VAC, 1600A, 690VAC, Design for Bottom Fitting, 1-, 3-pole
- Rated Impulse Withstand Voltage
- 8 kV
- Rated Insulation Voltage
- 800 V
- Rated Sc Withstand
- 50 kA / 1 s
- Rated Short Circuit Making Capacity With Solid Links Icm
- 100 kA
- Rated Voltage Ac Iec
- 690 V
- Short Circuit Current Rating Sccr
- 31,5kA@Ue = AC 400 V; Ie = 1600 A / 31,5kA@Ue = AC 500 V; Ie = 1600 A / 31,5kA@Ue = AC 690 V; Ie = 1600 A
- Switchability
- 1-,3-pole switching
- Utilization Category
- AC 21 B @ Ue = AC 400 V; Ie = 1600 A
