Mersen Z1023062
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

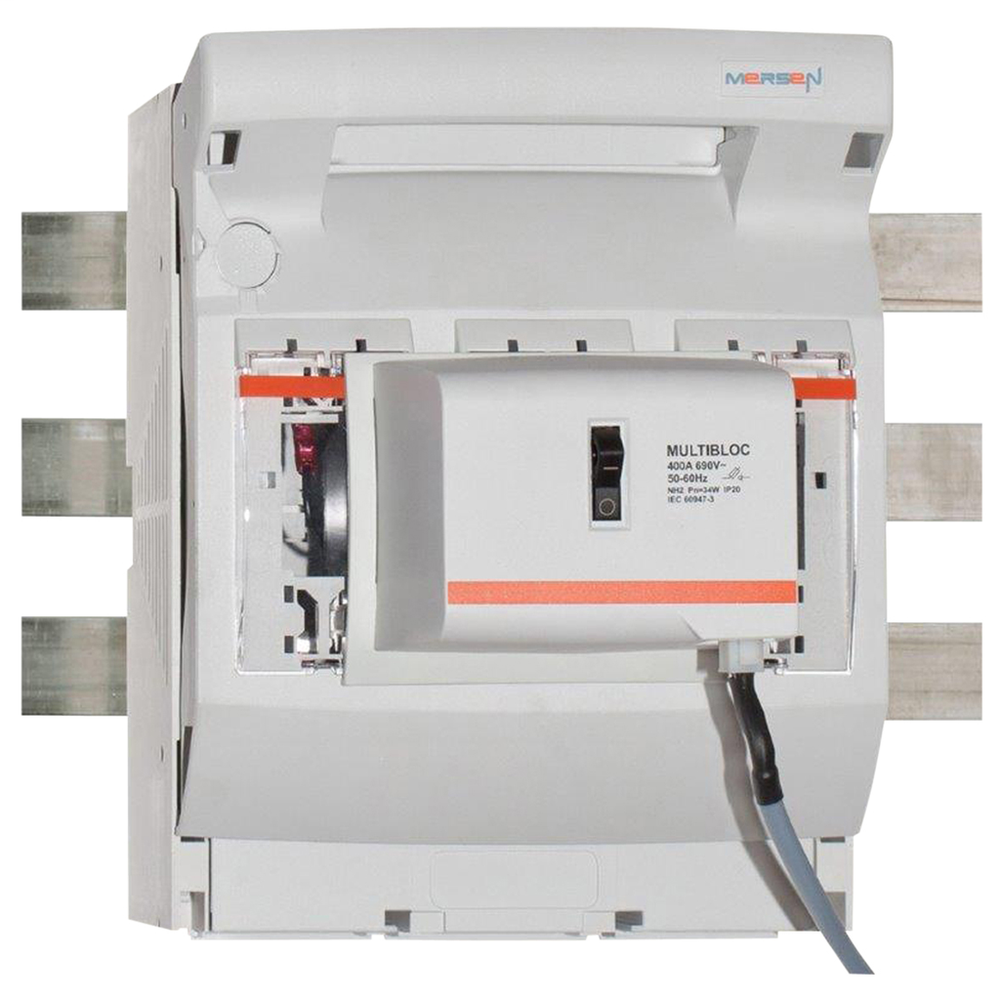

The production programme of MULTIBLOC® 2.RST8 comprises NH fuse switch disconnectors for 400A. Products are designed in triple pole units for direct installation on to 40 mm and 60 mm bus bar systems. For installation of MULTIBLOC® NH fuse switch disconnectors of different sizes in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC® size 2 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 2 400A. The system is a modular system, which allows the installation and combination of individual components. MULTIBLOC® offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.MULTIBLOC 2.RST8 size 2 / 400A, 3-pole electromechanical fuse monit. installed
Mersen Z1023062 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cable termination
- screw, bolt, clamp strap, extendable for V-terminal - optional
- Conventional Free Air Thermal Current - Solid Links
- 530 A
- Conventional Free Air Thermal Current With Fuse-Links Ith
- 400 A
- Country Of Origin
- CZ
- Frequency Hz
- 50 ... 60 Hz Hz
- Fuse Size
- 2
- Installation Mounting
- Bus bar system 40 mm
- Max Power Dissipation Of Fuse Links Pn
- 34 W
- Max Power Dissipation Of Solid Links Pn
- 9 W
- Number Of Poles
- 3-Pole
- Power Dissipation By Ith Without Fuse-Links
- 60 W
- Product Brand
- MULTIBLOC®
- Product Line
- MULTIBLOC® 2.RST8 , Size 2, 400A, 690VAC, Design for bus bar installation, Triple Pole
- Rated Impulse Withstand Voltage
- 12 kV
- Rated Insulation Voltage
- 1000 V
- Rated Sc Withstand
- 13 kA / 1 s
- Rated Short Circuit Making Capacity With Solid Links Icm
- 10.6 kA
- Rated Voltage Ac Iec
- 690 V
- Rated Voltage Dc Iec
- 440 V
- Safe on load connection/disconnection
- accordance with IEC 60947-3
- Short Circuit Current Rating Sccr
- 80kA@Ue = AC 400 V; Ie = 400 A / 80kA@Ue = AC 500 V; Ie = 400 A / 80kA@Ue = AC 690 V; Ie = 315 A
- Switchability
- Triple pole switching
- Symmetrical switch
- suitable for bottom/top cable terminal connections
- Utilization Category
- AC 23 B @ Ue = AC 400 V; Ie = 400 A
- Utilization Category 2
- AC 22 B @ Ue = AC 500 V; Ie = 400 A
- Utilization Category 3
- AC 21 B @ Ue = AC 690 V; Ie = 315 A
- Utilization Category 4
- DC 21 B @ Ue = DC 440 V; Ie = 400 A
