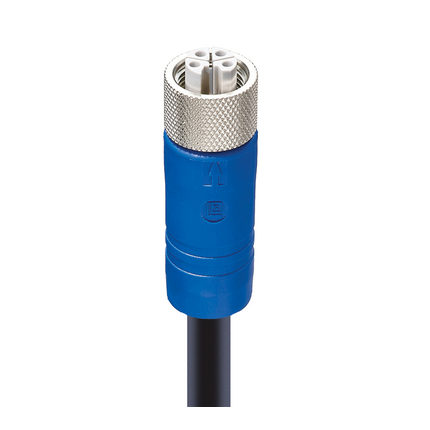

Lumberg Automation 934849114
Description
Lumberg Automation 934849114 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Contact Screw)
- M 12x1: (60-65) Ncm, hand-tight
Approvals
- UL
- UL 2237; cULus
- UL-File
- E497237
- VDE
- Yes
Cable Data
- Ambient Temperature (Fixed Installation)
- -30 °C to +80 °C
- Ambient Temperature (Flex Installation)
- -10 °C to +80 °C
- Cable Diameter D
- ø 7.4 ±0.20 mm
- Cable Jacket Color
- black
- Cable Jacket Material
- PVC
- Cable Number
- 993
- Conductor material
- Cu
- Conductor Size
- 1.50 mm²
- Cycles (Bending)
- ˃ 2 M
- Flammability Class (Cable Jacket)
- VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1
- Insulated Wire Diameter
- ø 2.35 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 4
- UL Cable Type
- AWM: 21179
- Wire Insulation Material
- PVC
Materials
- Attachment Material
- CuZn
- Attachment Plating
- Cu/Ni
- Contact Base Material
- CuNi
- Contact Bearer Color
- black
- Contact Bearer Material
- PBT GF
- Contact Plating
- Cu/Au
- Flammability Class (Contact Bearer)
- UL 94 V-2
- Flammability Class (Molded Body)
- UL 94 HB
- Molded Body Color
- blue
- Molded Body Material
- TPE
- O-Ring Material
- FKM
Notes
- Note Derating
- Notice derating
- Product Characteristics
- To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure.
Resistances
- Oil Resistance
- HD 22.10 Appendix A, DIN EN 60811-404
Safety & Environmental Compliance
- RoHS Compliant
- Yes
Specifications
- Cable Length
- 15 m
- Item Description
- RKT 4L-993/15 M
Technical Data
- Ambient Temperature (Operation)*
- -40 °C to +125 °C, notice derating
- Attachment Type
- Coupling Nut
- Brand
- Lumberg Automation
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- L
- Connector Design
- straight
- Connector Type
- Cordset, single ended
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-111
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Number of Pins
- 4
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Power Connector
- Product Sub Family
- M12 Power
- Protection Degree / IP Rating**
- IP65, IP67, IP69K
- Rated Current*
- 16 A
- Rated Current (UL)*
- 16 A
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 63 V
- Rated Voltage (UL)
- 63 V
- Shielding
- Unshielded
- Type of Contact / Gender
- female
