Lumberg Automation 934849092
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

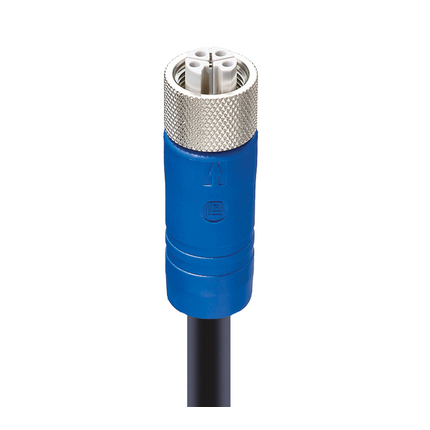

M12 Power Single-Ended Cordset: Female, straight, 4-pin, L-coded, blue body, 50 V AC/60 V DC, 16 A; PUR black cable, 1.50 mm²934849092 - RKT 4L-723 - M12 Power Single-Ended Cordset: Female, straight, 4-pin, L-coded, blue body, 50 V AC/60 V DC, 16 A; PUR black cable, 1.50 mm²
Lumberg Automation 934849092 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Contact Screw)
- M 12x1: (60-65) Ncm, hand-tight
Approvals
- UL
- UL 2237; cULus
- UL-File
- E497237
- VDE
- Yes
Cable Data
- Ambient Temperature (Drag Chain Inst)
- -20 °C to +60 °C
- Ambient Temperature (Fixed Installation)
- -40 °C to +80 °C
- Ambient Temperature (Fixed Installation short-term 100h)
- -40 °C to +125 °C
- Ambient Temperature (Flex Installation)
- -30 °C to +80 °C
- Cable Diameter D
- ø 7.4 ±0.20 mm
- Cable Jacket Color
- black
- Cable Jacket Material
- PUR
- Cable Number
- 723
- Conductor material
- Cu
- Conductor Size
- 1.50 mm²
- Cycles (Bending)
- ˃ 10 M
- Flammability Class (Cable Jacket)
- VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1
- Insulated Wire Diameter
- ø 2.35 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 4 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 7.5 x D
- Number of Wires
- 4
- UL Cable Type
- AWM: 20939
- Wire Insulation Material
- PP
Materials
- Attachment Material
- CuZn
- Attachment Plating
- Cu/Ni
- Contact Base Material
- CuNi
- Contact Bearer Color
- black
- Contact Bearer Material
- PBT GF
- Contact Plating
- Cu/Au
- Flammability Class (Contact Bearer)
- UL 94 V-2
- Flammability Class (Molded Body)
- UL 94 HB
- Molded Body Color
- blue
- Molded Body Material
- TPE
- O-Ring Material
- FKM
Notes
- Note Derating
- Notice derating
- Product Characteristics
- To ensure ingress protection, please check the O-ring’s position before connecting. Improperly positioned O-ring leads to ingress protection potential failure.
Resistances
- Halogenfree
- DIN VDE 0472 T.815
- Oil Resistance
- HD 22.10 Appendix A, DIN EN 60811-404
Safety & Environmental Compliance
- RoHS Compliant
- Yes
Specifications
- Cable Length
- 6 m
- Item Description
- RKT 4L-723/6 M
Technical Data
- Ambient Temperature (Operation)*
- -40 °C to +125 °C, notice derating
- Attachment Type
- Coupling Nut
- Brand
- Lumberg Automation
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- L
- Connector Design
- straight
- Connector Type
- Cordset, single ended
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-111
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Number of Pins
- 4
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Power Connector
- Product Sub Family
- M12 Power
- Protection Degree / IP Rating**
- IP65, IP67, IP69K
- Rated Current*
- 16 A
- Rated Current (UL)*
- 16 A
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 63 V
- Rated Voltage (UL)
- 63 V
- Shielding
- Unshielded
- Type of Contact / Gender
- female
