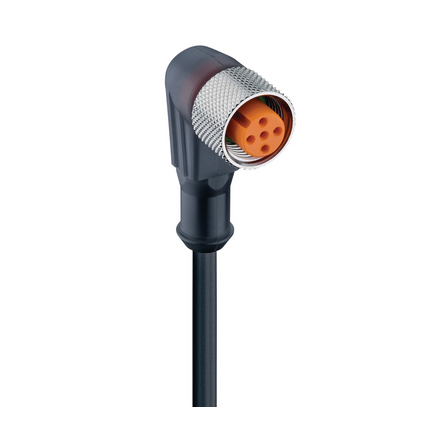

Lumberg Automation 30505
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 5-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 3xLEDs (PNP); PUR black cable, 5-wires, 0.50 mm²30505 - RKWT/LED P 5-228 - M12 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 5-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 3xLEDs (PNP); PUR black cable, 5-wires, 0.50 mm²
Lumberg Automation 30505 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Attachment)
- M 12x1: (50-60) Ncm, hand-tight
Cable Data
- Ambient Temperature (Drag Chain Inst)
- 25 °C - + 60 °C
- Ambient Temperature (Fixed Installation)
- 50 °C - + 105 °C (UL: + 80 °C)
- Ambient Temperature (Flex Installation)
- 25 °C - + 105 °C (UL: + 80 °C)
- Cable Characteristics
- Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Free of lacquer wetting disturbing substances; Coldness Flexibilty
- Cable Diameter D
- ø 5.40 ± 0.20 mm
- Cable Jacket Color
- black matt similarly RAL 9005
- Cable Jacket Material
- PUR
- Cable Number
- 228
- Conductor material
- Cu
- Conductor Size
- 0.50 mm²
- Cycles (Bending)
- ˃ 5 M
- Cycles (Torsion)
- ˃ 5 M @ ± 360 °/1 m
- Flammability Class (Cable Jacket)
- DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
- Insulated Wire Diameter
- ø 1.50 ± 0.05 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 5
- UL Cable Type
- AWM: 20549
- Wire Insulation Material
- PP
Materials
- Attachment Material
- CuZn
- Attachment Plating
- Nickel-plated
- Contact Base Material
- CuSn
- Contact Bearer Color
- Orange
- Contact Bearer Material
- TPU
- Contact Plating
- Cu/Au
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Molded Body)
- UL 94 HB
- Molded Body Color
- Translucent
- Molded Body Material
- TPU
- O-Ring Material
- FKM, green
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Protection Circuitry
- Function Indicator
- 3xLEDs (PNP)
Resistances
- Halogenfree
- DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
- Oil Resistance
- IEC 60811:404
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 10 m
- Item Description
- RKWT/LED P 5-228/10 M
Technical Data
- Ambient Temperature (Operation)
- 40 °C - + 90 °C
- Attachment Type
- Coupling Nut
- Brand
- Lumberg Automation
- Coding
- A
- Connector Design
- Angled
- Connector Type
- Cordset, single ended
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-101
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Number of Pins
- 5
- Operating Voltage
- 10-30 V DC
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Sensor / Actuator Connectors
- Product Sub Family
- M12 Standard
- Protection Degree / IP Rating
- IP65, IP67, IP68 (1 m / 24 h), IP69K
- Rated Current
- 4 A
- Rated Impulse Voltage
- 0.8 kV
- Rated Voltage
- 30 V
- Shielding
- Unshielded
- Type of Contact / Gender
- Female
