Description

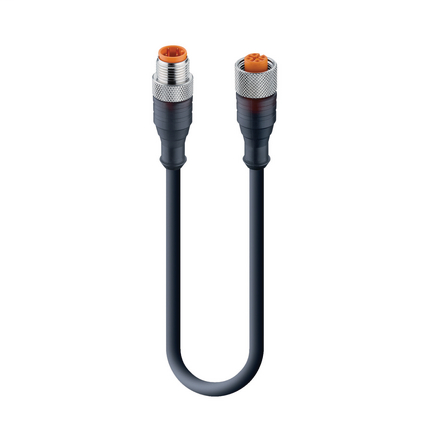

Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 4-pin M12 Standard connector to female straight A-coded translucent 4-pin M12 Standard connector, 230 V AC/DC, 4 A; PUR black cable, 4-wires, 0.34 mm²3024 - RST 4-RKT 4-500 - Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 4-pin M12 Standard connector to female straight A-coded translucent 4-pin M12 Standard connector, 230 V AC/DC, 4 A; PUR black cable, 4-wires, 0.34 mm²
Lumberg Automation 3024 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- UL
- UL 2238; cURus
- UL-File
- E315587
Cable Data
- Ambient Temperature (Drag Chain Inst)
- + 5 °C - + 60 °C
- Ambient Temperature (Fixed Installation)
- 50 °C - + 80 °C
- Ambient Temperature (Flex Installation)
- 40 °C - + 80 °C
- Cable Diameter D
- ø 5.1 ± 0.15 mm
- Cable Jacket Color
- black
- Cable Jacket Material
- PUR
- Cable Number
- 500
- Conductor material
- Cu
- Conductor Size
- 0.34 mm²
- Cycles (Bending)
- ˃ 5 M
- Flammability Class (Cable Jacket)
- UL Horizontal Flametest, CSA FT2
- Insulated Wire Diameter
- ø 1.30 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 7.5 x D
- Number of Wires
- 4
- UL Cable Type
- AWM: 20549
- Welding Resistance
- Welding spark resistant
- Wire Insulation Material
- TPE-P
Notes
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Product Description
- Brand
- Lumberg Automation
- Connector Type
- Cordset, double ended
- Operating Voltage
- 230 V AC/DC
- Product Family
- Sensor / Actuator Connectors
- Rated Current
- 4 A
- Rated Current (UL)
- 4 A
- Rated Impulse Voltage
- 2.5 kV
- Rated Voltage
- 250 V
- Rated Voltage (UL)
- 250 V AC
- Shielding
- Unshielded
Resistances
- Halogenfree
- EN 50267-2-1
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 2 m
- Item Description
- RST 4-RKT 4-500/2 M
Technical Data Side 1
- Ambient Temperature (Operation)
- 40 °C - + 90 °C
- Attachment Material
- CuZn
- Attachment Plating
- Nickel-plated
- Attachment Type
- Coupling Screw
- Coding
- A
- Connector Design
- Straight
- Contact Base Material
- CuSn
- Contact Bearer Color
- Orange
- Contact Bearer Material
- TPU
- Contact Plating
- Cu/Au
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-101
- Fastening Torque (Attachment)
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Molded Body)
- UL 94 HB
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Molded Body Color
- Translucent
- Molded Body Material
- TPU
- Note
- Do not connect or disconnect under load.
- Number of Pins
- 4
- Operating Temperature (UL)
- max. + 50 °C
- Overvoltage Category
- II acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family
- M12 Standard
- Protection Degree / IP Rating
- IP65, IP67, IP68 (1 m / 24 h), IP69K
- Type of Contact / Gender
- Male
Technical Data Side 2
- Ambient Temperature (Operation), Side 2
- 40 °C - + 90 °C
- Attachment Material, Side 2
- CuZn
- Attachment Plating, Side 2
- Nickel-plated
- Attachment Type, Side 2
- Coupling Nut
- Coding, Side 2
- A
- Connector Design, Side 2
- Straight
- Contact Base Material, Side 2
- CuSn
- Contact Bearer Color, Side 2
- Orange
- Contact Bearer Material, Side 2
- TPU
- Contact Plating, Side 2
- Cu/Au
- Contact Resistance, Side 2
- ≤ 10 mOhm
- Design Standard, Side 2
- IEC 61076-2-101
- Fastening Torque (Attachment), Side 2
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer), Side 2
- UL 94 HB
- Flammability Class (Molded Body), Side 2
- UL 94 HB
- Insulation Resistance, Side 2
- ˃ 10^9 Ohm
- Mating Cycles, Side 2
- ≤ 100
- Molded Body Color, Side 2
- Translucent
- Molded Body Material, Side 2
- TPU
- Number of Pins, Side 2
- 4
- Operating Temperature (UL), Side 2
- max. + 50 °C
- O-Ring Material, Side 2
- FKM, green
- Overvoltage Category, Side 2
- II acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree, Side 2
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family, Side 2
- M12 Standard
- Protection Degree / IP Rating, Side 2
- IP65, IP67, IP68 (1 m / 24 h), IP69K
- Type of Contact / Gender, Side 2
- Female
