Lumberg Automation 15717
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

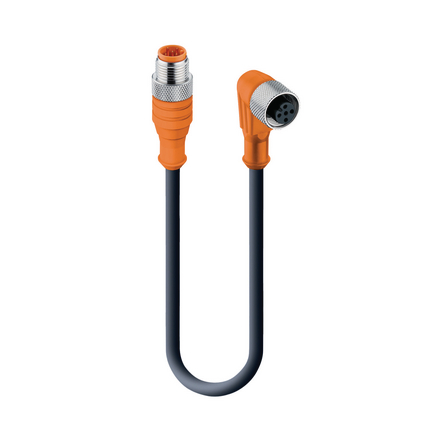

Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 5-pin M12 Standard connector to female angled A-coded orange 5-pin M12 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.34 mm²15717 - RST 5-RKWT 5-87 - Sensor/Actuator Double-Ended Cordset: Male straight A-coded orange 5-pin M12 Standard connector to female angled A-coded orange 5-pin M12 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 5-wires, 0.34 mm²
Lumberg Automation 15717 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable Data
- Ambient Temperature (Fixed Installation)
- 40 °C - + 80 °C
- Ambient Temperature (Flex Installation)
- 20 °C - + 80 °C
- Cable Characteristics
- Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; LABS-free of lacquer wetting disturbing substances; Exclusion of silicone
- Cable Diameter D
- ø 5.50 ± 0.20 mm
- Cable Jacket Color
- black matt similarly RAL 9005
- Cable Jacket Material
- PUR
- Cable Number
- 087
- Conductor material
- Cu
- Conductor Size
- 0.34 mm²
- Flammability Class (Cable Jacket)
- DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2
- Insulated Wire Diameter
- ø 1.40 ± 0.05 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 5
- Wire Insulation Material
- PVC TI2
Notes
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- * only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Product Description
- Brand
- Lumberg Automation
- Connector Type
- Cordset, double ended
- Operating Voltage
- 50 V AC / 60 V DC
- Product Family
- Sensor / Actuator Connectors
- Rated Current*
- 4 A
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 60 V
- Shielding
- Unshielded
Resistances
- Oil Resistance
- TM5 HD21.1 S4
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 5 m
- Contact Bearer Color
- Orange
- Item Description
- RST 5-RKWT 5-87/5 M
- Rated Current
- 4 A
Technical Data Side 1
- Ambient Temperature (Operation)*
- 40 °C - + 90 °C
- Attachment Material
- CuZn
- Attachment Plating
- Nickel-plated
- Attachment Type
- Coupling Screw
- Coding
- A
- Connector Design
- Straight
- Contact Base Material
- CuSn
- Contact Bearer Color
- Orange
- Contact Bearer Material
- TPU-GF
- Contact Plating
- Cu/Au
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-101
- Fastening Torque (Attachment)
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Molded Body)
- UL 94 HB
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Molded Body Color
- Orange
- Molded Body Material
- TPU
- Note
- Do not connect or disconnect under load.
- Number of Pins
- 5
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family
- M12 Standard
- Protection Degree / IP Rating**
- IP65, IP67, IP68 (1 m / 24 h), IP69K
- Type of Contact / Gender
- Male
Technical Data Side 2
- Ambient Temperature (Operation), Side 2*
- 40 °C - + 90 °C
- Attachment Material, Side 2
- CuZn
- Attachment Plating, Side 2
- Nickel-plated
- Attachment Type, Side 2
- Coupling Nut
- Coding, Side 2
- A
- Connector Design, Side 2
- Angled
- Contact Base Material, Side 2
- CuSn
- Contact Bearer Color, Side 2
- Black
- Contact Bearer Material, Side 2
- TPU
- Contact Plating, Side 2
- Cu/Au
- Contact Resistance, Side 2
- ≤ 10 mOhm
- Design Standard, Side 2
- IEC 61076-2-101
- Fastening Torque (Attachment), Side 2
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer), Side 2
- UL 94 HB
- Flammability Class (Molded Body), Side 2
- UL 94 HB
- Insulation Resistance, Side 2
- ˃ 10^9 Ohm
- Mating Cycles, Side 2
- ≤ 100
- Molded Body Color, Side 2
- Orange
- Molded Body Material, Side 2
- TPU
- Number of Pins, Side 2
- 5
- O-Ring Material, Side 2
- FKM, green
- Overvoltage Category, Side 2
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree, Side 2
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family, Side 2
- M12 Standard
- Protection Degree / IP Rating, Side 2**
- IP65, IP67, IP68 (1 m / 24 h), IP69K
- Type of Contact / Gender, Side 2
- Female
