Lumberg Automation 12106
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

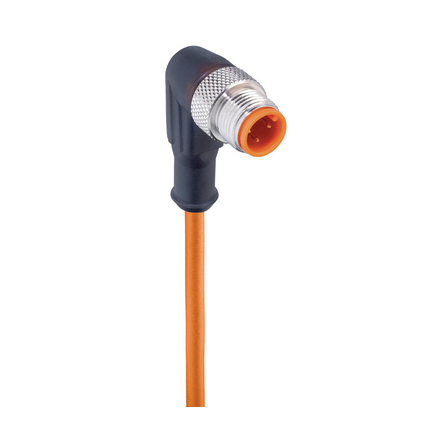

M12 Standard Sensor/Actuator Single-Ended Cordset: Male, angled, 4-pin, A-coded, translucent body, 230 V AC/DC, 4 A; PVC orange cable, 3-wires, 0.34 mm²12106 - RSWT 3-06 - M12 Standard Sensor/Actuator Single-Ended Cordset: Male, angled, 4-pin, A-coded, translucent body, 230 V AC/DC, 4 A; PVC orange cable, 3-wires, 0.34 mm²
Lumberg Automation 12106 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Attachment)
- M 12x1: (50-60) Ncm, hand-tight
Approvals
- UL
- UL 2238; cURus
- UL-File
- E315587
Cable Data
- Ambient Temperature (Drag Chain Inst)
- + 5 °C - + 60 °C
- Ambient Temperature (Fixed Installation)
- 40 °C - + 90 °C (UL: + 80 °C)
- Ambient Temperature (Flex Installation)
- + 5 °C - + 90 °C (UL: + 80 °C)
- Cable Characteristics
- Free of lacquer wetting disturbing substances; Exclusion of silicone
- Cable Diameter D
- ø 5.0 ± 0.2 mm
- Cable Jacket Color
- orange
- Cable Jacket Material
- PVC
- Cable Number
- 006
- Conductor material
- Cu
- Conductor Size
- 0.34 mm²
- Cycles (Bending)
- ˃ 1 M
- Flammability Class (Cable Jacket)
- DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1
- Insulated Wire Diameter
- ø 1.50 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 3
- UL Cable Type
- AWM: 2464
- Wire Insulation Material
- PVC
Materials
- Attachment Material
- CuZn
- Attachment Plating
- Nickel-plated
- Contact Base Material
- CuSn
- Contact Bearer Color
- Orange
- Contact Bearer Material
- TPU-GF
- Contact Plating
- Cu/Au
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Molded Body)
- UL 94 HB
- Molded Body Color
- Translucent
- Molded Body Material
- TPU
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- * only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Resistances
- Oil Resistance
- Good chemical and oil resistance
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 2 m
- Contact Bearer Color
- Orange
- Item Description
- RSWT 3-06/2 M
- Rated Current
- 4 A
Technical Data
- Ambient Temperature (Operation)*
- 40 °C - + 90 °C
- Attachment Type
- Coupling Screw
- Brand
- Lumberg Automation
- Coding
- A
- Connector Design
- Angled
- Connector Type
- Cordset, single ended
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-101
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Number of Pins
- 4
- Operating Temperature (UL)
- max. + 50 °C
- Operating Voltage
- 230 V AC/DC
- Overvoltage Category
- II acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Sensor / Actuator Connectors
- Product Sub Family
- M12 Standard
- Protection Degree / IP Rating**
- IP65, IP67
- Rated Current*
- 4 A
- Rated Current (UL)*
- 4 A
- Rated Impulse Voltage
- 2.5 kV
- Rated Voltage
- 250 V
- Rated Voltage (UL)
- 250 V AC
- Shielding
- Unshielded
- Type of Contact / Gender
- Male
