Description

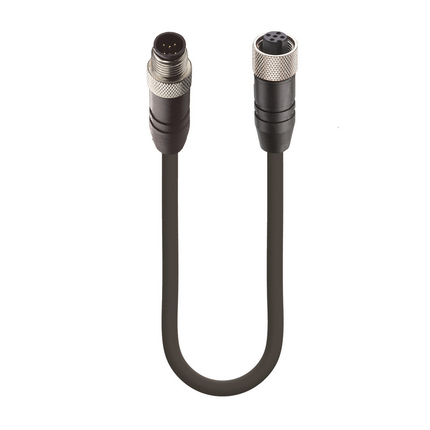

CANopen / DeviceNet Data Double-Ended Cordset: Male straight A-coded black M12 Standard to female straight A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²10966 - 0935 253 103 - CANopen / DeviceNet Data Double-Ended Cordset: Male straight A-coded black M12 Standard to female straight A-coded black M12 Standard, 50 V AC / 60 V DC, 4 A; PUR black cable, 4-wires, Data: 2x0.25 mm² + Power: 2x0.34 mm²
Lumberg Automation 10966 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable Data
- Ambient Temperature (Drag Chain Inst)
- 25 °C - + 60 °C
- Ambient Temperature (Fixed Installation)
- 50 °C - + 80 °C
- Ambient Temperature (Flex Installation)
- 25 °C - + 80 °C
- Cable Characteristics
- Exclusion of dangerous materials; Line construction acc. CAN-Bus and DeviceNET specification; Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; Free of lacquer wetting disturbing substances; Coldness flexibilty
- Cable Diameter D
- ø 6.70 ± 0.20 mm
- Cable Jacket Color
- black matt similarly RAL 9005
- Cable Jacket Material
- PUR
- Cable Number
- 253
- Conductor material
- Cu
- Conductor Size
- Data: 2x0.25 mm² + Power: 2x0.34 mm²
- Core Colors
- Data: blue, white + Power: red, black
- Cycles (Bending)
- ˃ 1 M
- Element Shield
- Al-PT Foil
- Flammability Class (Cable Jacket)
- DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1, CSA FT-1
- Foil shield
- Al-PT Foil
- Insulated Wire Diameter
- Data: ø 2.05 ± 0.10 mm + Power: ø 1.40 ± 0.05 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 4
- Overall Shield (Cable)
- Cu-ETP1 tinned
- UL Cable Type
- AWM: 20549 or 21198
- Wire Insulation Material
- Data: PE + Power: PE or PP
Notes
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- * only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Product Description
- Brand
- Lumberg Automation
- Connector Type
- Cordset, double ended
- Data Transmission
- CANopen / DeviceNet
- Operating Voltage
- 50 V AC / 60 V DC
- Product Family
- Data Connectors
- Rated Current*
- 4 A
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 60 V
- Shielding
- Unshielded
Resistances
- Halogenfree
- DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 2 m
- Item Description
- 0935 253 103/2 M
Technical Data Side 1
- Ambient Temperature (Operation)*
- 40 °C - + 80 °C
- Attachment Material
- CuZn
- Attachment Plating
- Nickel-plated
- Attachment Type
- Coupling Screw
- Coding
- A
- Connector Design
- Straight
- Contact Base Material
- CuSn
- Contact Bearer Color
- Black
- Contact Bearer Material
- TPU-GF
- Contact Plating
- Cu/Au
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- IEC 61076-2-101
- Fastening Torque (Attachment)
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer)
- UL 94 HB
- Flammability Class (Molded Body)
- UL 94 HB
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Molded Body Color
- Black
- Molded Body Material
- TPU
- Note
- Do not connect or disconnect under load.
- Number of Pins
- 5
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family
- M12 Standard
- Protection Degree / IP Rating**
- IP65, IP67, IP68 (1 m / 24 h), IP69K
- Type of Contact / Gender
- Male
Technical Data Side 2
- Ambient Temperature (Operation), Side 2*
- 40 °C - + 80 °C
- Attachment Material, Side 2
- CuZn
- Attachment Plating, Side 2
- Nickel-plated
- Attachment Type, Side 2
- Coupling Nut
- Coding, Side 2
- A
- Connector Design, Side 2
- Straight
- Contact Base Material, Side 2
- CuSn
- Contact Bearer Color, Side 2
- Black
- Contact Bearer Material, Side 2
- TPU
- Contact Plating, Side 2
- Cu/Au
- Contact Resistance, Side 2
- ≤ 10 mOhm
- Design Standard, Side 2
- IEC 61076-2-101
- Fastening Torque (Attachment), Side 2
- M 12x1: (50-60) Ncm, hand-tight
- Flammability Class (Contact Bearer), Side 2
- UL 94 HB
- Flammability Class (Molded Body), Side 2
- UL 94 HB
- Insulation Resistance, Side 2
- ˃ 10^9 Ohm
- Mating Cycles, Side 2
- ≤ 100
- Molded Body Color, Side 2
- Black
- Molded Body Material, Side 2
- TPU
- Number of Pins, Side 2
- 5
- Overvoltage Category, Side 2
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree, Side 2
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family, Side 2
- M12 Standard
- Protection Degree / IP Rating, Side 2**
- IP65, IP67, IP68 (1 m / 24 h), IP69K
- Type of Contact / Gender, Side 2
- Female
