Leviton T5280-W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

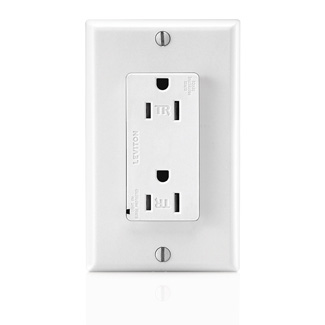

Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.Decora Plus Surge Protective Duplex Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Leviton T5280-W is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 15 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Self-Grounding
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 125 VAC
- Wire
- 3
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Polycarbonate
- Clamp Nuts
- Zinc-Plated Steel
- Face Material
- Nylon
- Ground Clips
- Brass-Plated Steel
- Grounding Screw
- Brass-Plated Steel
- Line Contacts
- Brass Triple-Wipe
- Shutter Mechanism
- Delrin® Acetal
- Terminal Screws
- Brass-Plated Steel
- Yoke
- Zinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back or Side Wire
- Torque Range
- 14-16 inch pounds
Performance Data
- Diagnostics
- Indicator Light
- Joules Rating
- 720
- Maximum Surge Current, Per Mode (Per Phase)
- 27kA (L-N:18kA, L-G:9kA)
- MCOV
- 150V rms
- Noise Rejection
- -30dB at 500kHz-30MHz
- Nominal Discharge Current Rating
- 3kA
- Short Circuit Current Rating
- 5kA
- VPR
- L-N: 600V, L-G: 700V, N-G: 600V
Product Features
- Brand
- Decora Plus
- Color
- White
- Device Type
- Duplex Receptacle Outlet
- Feature
- Tamper-Resistant
- Function
- Surge Protective
- Grade
- Commercial Specification Grade
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- Agency Certifications
- UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- ANSI
- C-73
- NEMA
- WD-6
- NOM
- 057
Warranty
- Warranty
- 5-Year Limited
