Leviton OSSMT-MDI
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

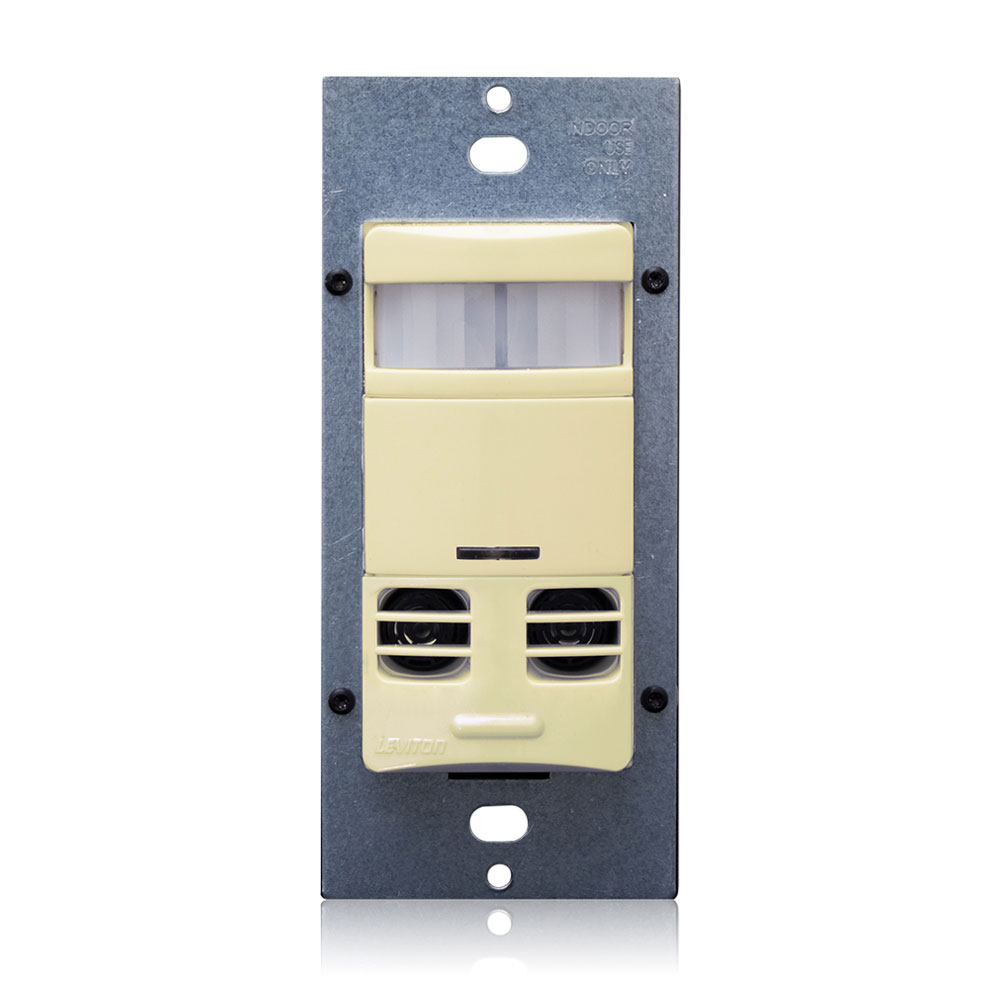

Multi-Tech wall box occupancy sensor w/neutral wire lighting control, 120/208/220/230/240/277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delay, Ambient Light Override, Self Adjusting, Field Configurable, USMCA Compliant. Color: IvoryOccupancy Sensor, Multi-Technology (PIR Sensor / Ultrasonic Sensor), Wall Switch, 2400SF, 120-277V, Ivory, Self-Adaptive, Decora®
Leviton OSSMT-MDI is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Load Rating
- Incandescent/Tungsten: 800W @ 120V - Fluorescent: 1200VA @ 120V 2700VA @ 277V, 1500VA @ 347V - Motor: 1/4 HP @ 120V
- Neutral Wire Connection
- Required
- Power Consumption
- U/S and PIR: 120V 390mW, 277V 480mW, 347V 500mW - PIR only: 120V 190mW, 277V 270mW, 347V 350mW
- Voltage
- 120-277 VAC
- Wiring
- Line - Black, Load - Blue, Ground - Green, Neutral - White
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
- Relative Humidity
- 20% to 90% non-condensing
- Storage Temperature Range
- 14° to 185°F (-10° to 85°C)
Mechanical Specifications
- Mounting Type
- Wall Switch
- Size
- Height 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm)
- Switch Type
- Single-Pole
Performance Specifications
- Coverage (Sq.Ft.)
- 2400
- Pattern
- 180°
Product Features
- Application
- Retrofit, Private and executive offices, Conference rooms, Storage areas, Restrooms, Classrooms, Lounges, Training areas, Multi-location switching (similar to 3-way)
- Color
- Ivory
- Grade
- Commercial
- Mounting
- Wall Switch
- Product Line
- OSSMT
- Sensor Technology
- Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
- Sensor Type
- Occupancy
- Time Delay
- 30s-30m
Specifications
- Country of Origin
- China
Standards and Certifications
- Listings
- UL/cUL
- Title 24 Compliant
- Yes
- USMCA Compliant
- Yes
Type
- Product Type
- Occupancy Sensor
Warranty
- Warranty
- 5-Year Limited
