Description

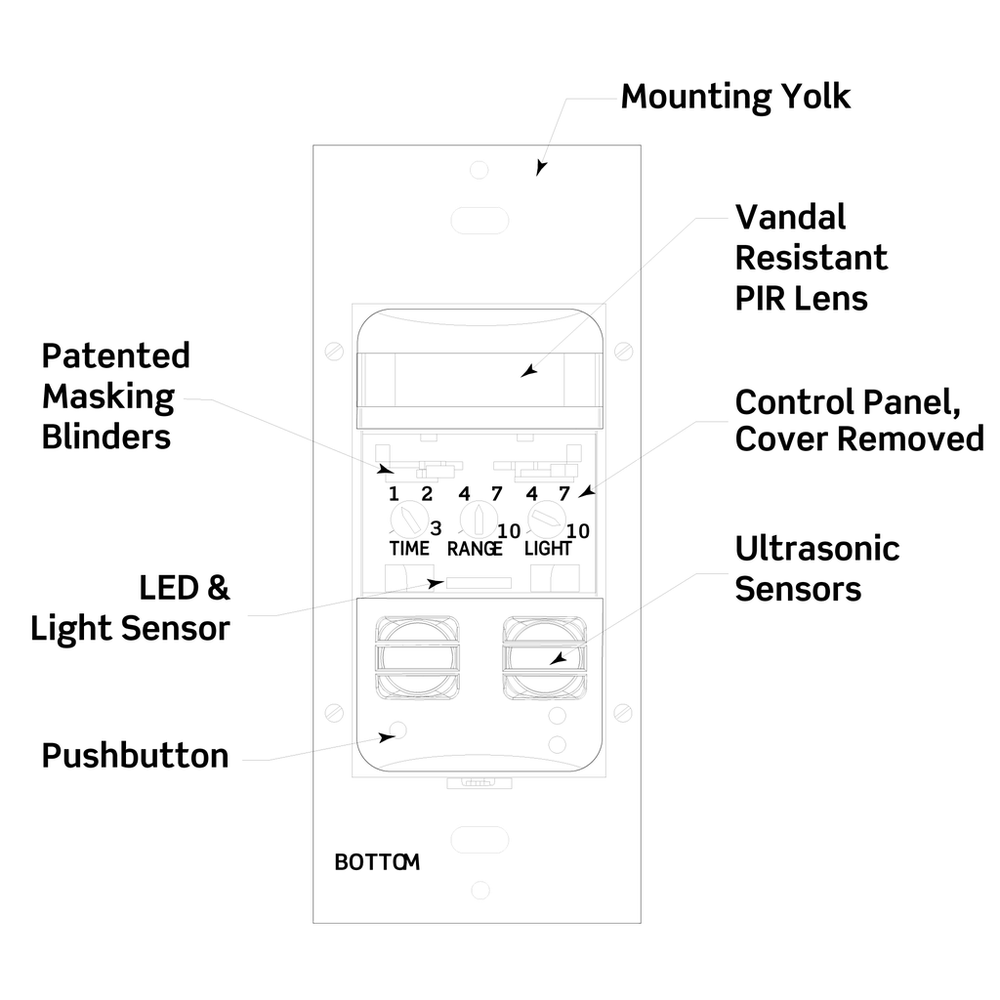

Multi-Tech wall box occupancy sensor w/no neutral wire lighting control, 120/208/220/230/240/277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delay, Ambient Light Override, Self Adjusting, Field Configurable, USMCA Compliant. Color: WhiteOccupancy Sensor, Multi-Technology (PIR Sensor / Ultrasonic Sensor), Wall Switch, 2400SF, 120-277V, No Neutral, White, Self-Adaptive, Decora®
Leviton OSSMT-GDW is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Load Rating
- Incandescent/Tungsten: 800W @ 120V Fluorescent: 1200VA @ 120V 2700VA @ 277V, 1500VA @ 347V Motor: 1/4 HP @ 120V
- Neutral Wire Connection
- Not Required
- Power Consumption
- U/S and PIR: 120V 110mW, 277V 340mW - PIR only: 120V 70mW, 277V 310mW
- Voltage
- 120-277 VAC
- Wiring
- Line-Black, Neutral-White, Load-Blue, Ground-Green
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
- Relative Humidity
- 20% to 90% non-condensing
- Storage Temperature Range
- 14° to 185°F (-10° to 85°C)
Mechanical Specifications
- Mounting Type
- Wall Switch
- Size
- Height 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm)
- Switch Type
- Single-Pole
Performance Specifications
- Coverage (Sq.Ft.)
- 2400
- Pattern
- 180°
Product Features
- Application
- Retrofit, Private and Executive Offices, Conference Rooms, Storage Areas, Restrooms, Classrooms, Lounges, Training Areas, Multi-Location Switching
- Color
- White
- Grade
- Commercial
- Mounting
- Wall Switch
- Product Line
- OSSMT
- Sensor Technology
- Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
- Sensor Type
- Occupancy
- Time Delay
- 30s - 30m
Specifications
- Country of Origin
- China
Standards and Certifications
- Listings
- ETL/cETL Listed, CSA
- Title 24 Compliant
- Yes
- USMCA Compliant
- Yes
Type
- Product Type
- Occupancy Sensor
Warranty
- Warranty
- 5-Year Limited
