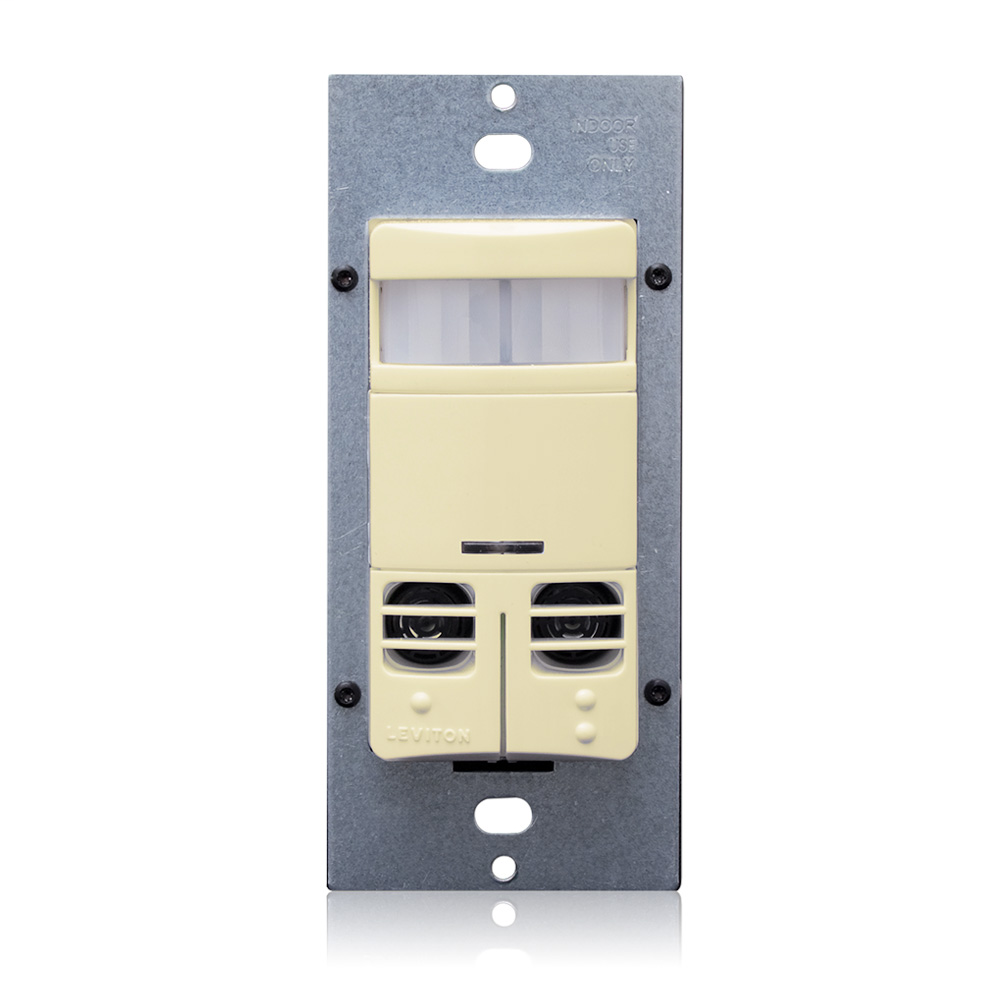

Leviton OSSMD-MDI
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Dual relay multi-tech wall box occupancy sensor w/neutral wire lighting control, 120/208/220/230/240/277v; 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delay, Ambient Light Override, Self Adjusting, Field Configurable, NAFTA Compliant. Color: Ivory
Leviton OSSMD-MDI is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Voltage
- 120/277 VAC
Mechanical Specifications
- Neutral Wire Connection
- Required
- Relay Type
- Dual Relay
- Switch Type
- Single-Pole, Dual Relay
Product Features
- Color
- Ivory
- Country Of Origin
- Mexico
- Coverage (Sq.Ft.)
- 2400
- Product Line
- OSSMD
- Sensor Type
- Wall Switch
- Technology
- Multi-Technology PIR/Ultrasonic
Standards and Certifications
- Adjustment
- Self-Adjusting
- Code Compliance
- California Title 24
- Color
- Ivory
- Consumption (mA)
- null
- Coverage (Sq.Ft.)
- 2400
- Device Type
- Occupancy Sensor
- Grade
- Commercial
- HVAC Relay
- null
- LED Color
- Green and Red
- Load Rating
- 800W@120V INC 1200VA@120V 2700VA@277V FL
- Motor
- 1/4 HP @ 120V
- Mounting
- Wall Switch
- Mounting Height (Ft.)
- 4 Ft.
- NAFTA Compliant
- Yes
- Neutral Wire Connection
- Required
- Number of Relays
- 2
- Operating Temperature
- 0°C to 50°C
- Pattern
- 180°
- Photocell
- Internal
- Power Pack
- External Power Pack Not Required
- Product Line
- OSSMD
- Relative Humidity
- 20% to 90% non-condensing
- Secondary Relay
- 800W@120V INC 800VA@120V 1200VA@277V FL
- Size
- 4.06" H x 1.75" W x 1.85" D (103.2mm x 44.4mm x 47.2mm)
- Standards and Certifications
- ETL/C-ETL
- Storage Temperature Range
- -10°C to 85°C
- Switch Type
- Single-Pole, Dual Relay
- Technology
- Multi-Technology PIR/Ultrasonic
- Time Delay
- 30s-30m
- Title 24 Compliant
- Yes
- Voltage
- 120/277 VAC
- Wallplate
- Order Separately
- Warranty
- 5-Year Limited
