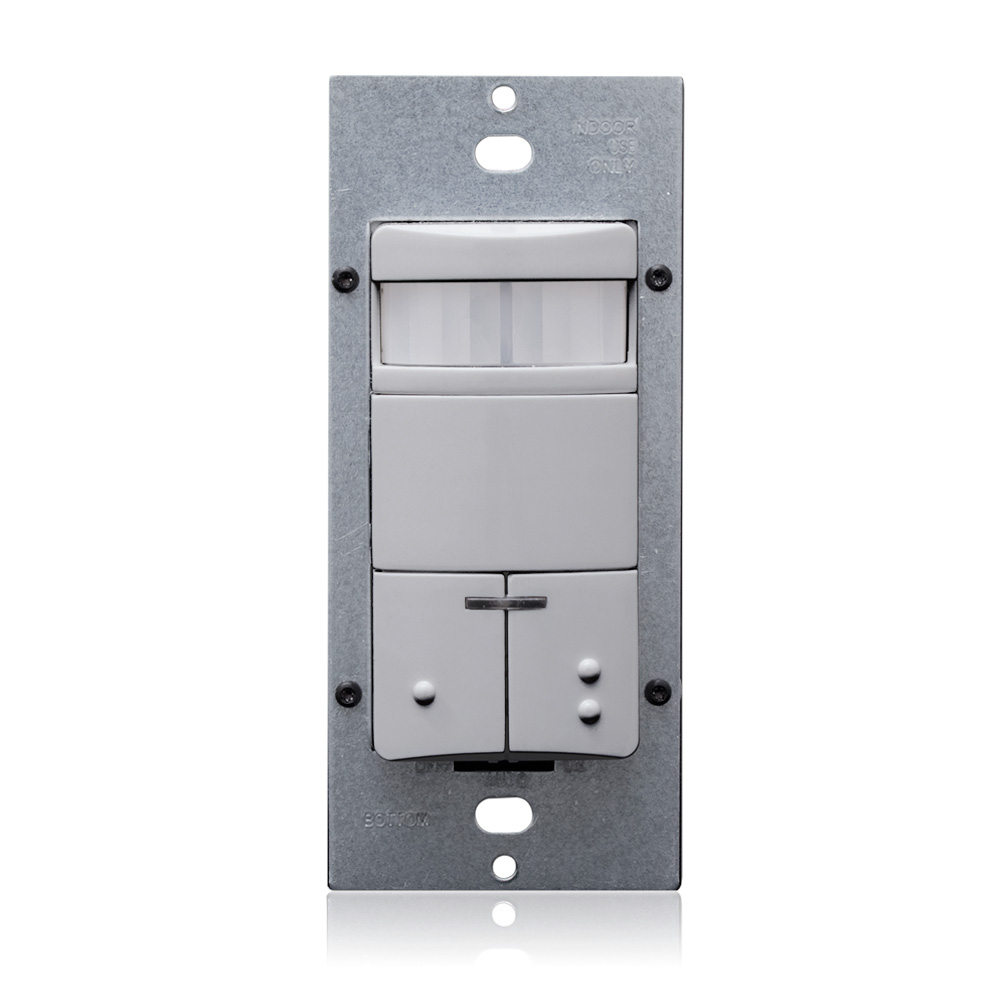

Leviton ODS0D-IDG
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
AutoON/AutoOFF PIR Occupancy Sensor (ManualON/AutoOFF selectable) lighting control, Vandal resistant PIR lens, Manual 2 Pole Wall Switches. Robust Dual Latching 10A Relays, No-Neutral wire required. Adjustable Service Switch: OFF/AUTO/ON (Keep in AUTO), 120/208/220/230/240/277VAC, 50/60hz, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side). Adjustable time delay (in Adapting mode: 30s, 5/10/20m, Non-Adapting mode: 5/10/20/30m), Walk-through feature, Audible Beep Warn. Light Sensor (Photocell) included for Ambient Light Hold-Off feature. Daylighting: Classroom Mode (operates both relays) and Conference Room Mode (operates 2 relay after). CEC Title 20/24 compliant. Wall plate sold separately. Color: Gray.Occupancy Sensor, Dual Relay, PIR, Wall Switch, 2100SF, 120-277V, Grey, Decora®
Leviton ODS0D-IDG is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Load Rating
- Primary Relay Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V
- Neutral Wire Connection
- Not Required
- Power Consumption
- 120V - 110mW, 277V - 270mW
- Voltage
- 120/230/277 VAC
- Wiring
- Primary Relay No. 16 AWG leads: Line-Black, Load-Blue, Ground-Green - Secondary Relay N0. 18 AWG isolated contact leads: (2) Red
Environmental Specifications
- Operating Temperature
- 32° to 122°F (0° to 50°C)
- Relative Humidity
- 20% to 90% non-condensing
- Storage Temperature Range
- 14° to 185°F (-10° to 85°C)
Mechanical Specifications
- Mounting Type
- Wall Switch
- Relay Type
- Dual Relay
- Size
- Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)
- Switch Type
- Single-Pole, Dual Relay
Performance Specifications
- Coverage (Sq.Ft.)
- 2100
- Pattern
- 180°
Product Features
- Application
- Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi-Level or A/B Switching
- Color
- Gray
- Grade
- Commercial
- Mounting
- Wall Switch
- Product Line
- ODS0D
- Sensor Technology
- Passive Infrared (PIR)
- Sensor Type
- Occupancy
- Time Delay
- 30s-30m
Standards and Certifications
- Listings
- cUL/US Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements, FCC Compliant
Type
- Product Type
- Occupancy Sensor
Warranty
- Warranty
- 5-Year Limited
