Description

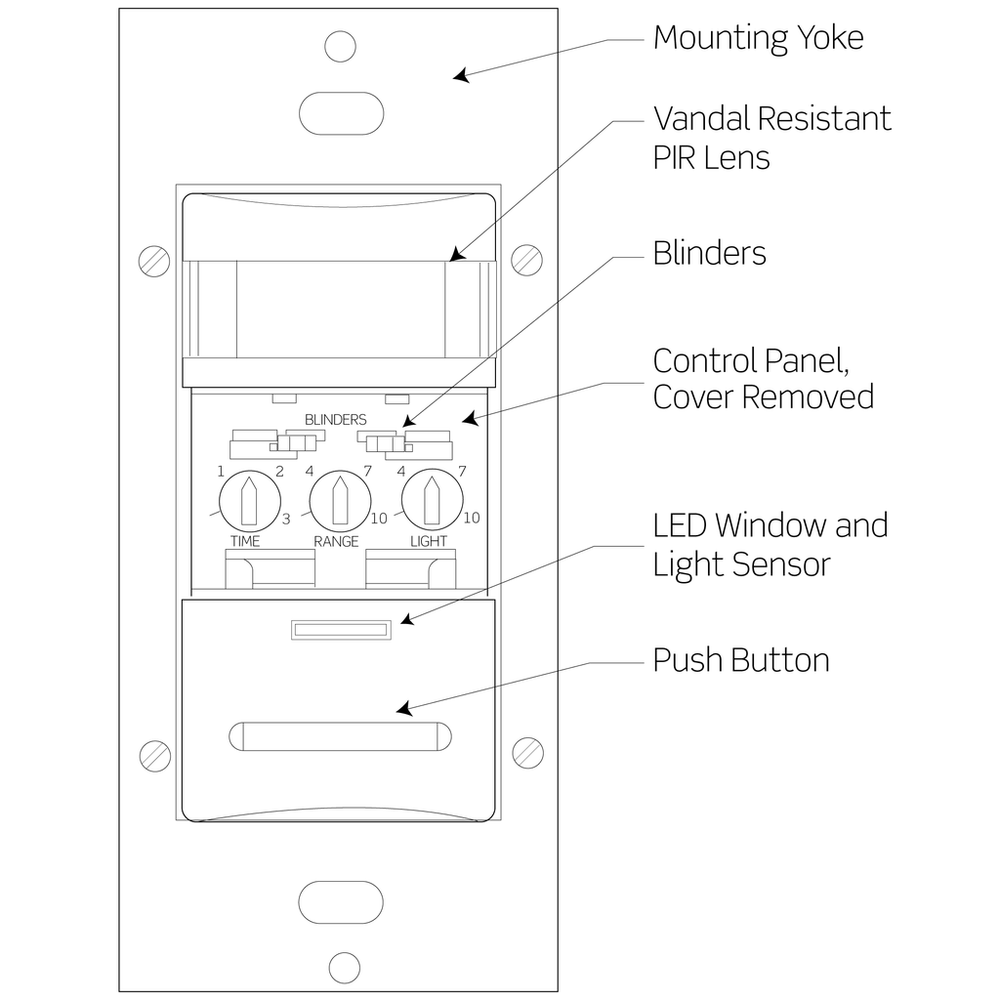

Passive Infrared wallbox occupancy sensor, Single Relay, photocell controlled, Low profile, 180 degree field of view, 1600 sq ft, Adjustable Blinders, Time Delay 30s-30m. 120/277VAC, 60Hz, AutoON/ManualON selectable, CEC Title 24 Compliant, UL Listed, RoHS Compliant, Color: White.Occupancy Sensor, PIR, Wall Switch, 1600SF, 120-277V, White, Decora®
Leviton ODS06-IDW is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Load Rating
- Fluorescent: 800VA @ 120V, 1500VA @ 277V - Incandescent: 600W @ 120V Motor: 1/4 HP @ 120V
- Neutral Wire Connection
- Not Required
- Voltage
- 120-277 VAC
- Wiring
- Line-Black, Load-Blue, Ground-Green, No Neutral required
Environmental Specifications
- Operating Temperature
- 32° to 122°F (0° to 50°C)
- Relative Humidity
- 20% to 90% non-condensing
- Storage Temperature Range
- 14° to 185°F (-10° to 85°C)
Mechanical Specifications
- Mounting Type
- Wall Switch
- Size
- Height 4.06"(103.2mm), Width 1.75"(44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)
- Switch Type
- Single-Pole
Performance Specifications
- Coverage (Sq.Ft.)
- 1600
- Pattern
- 180°
Product Features
- Application
- Small offices, Conference rooms, Lounges, Classrooms
- Color
- White
- Grade
- Commercial
- Mounting
- Wall Switch
- Product Line
- ODS06
- Sensor Technology
- Passive Infrared (PIR)
- Sensor Type
- Occupancy
- Time Delay
- 30s-30m
Specifications
- Country of Origin
- China
Standards and Certifications
- California Title 24
- No
- Listings
- cULus, can be used to comply with ASHRAE 90.1 and Title 24, Part 6 occupancy sensing requirements, meets FCC regulations, NOM certified
Type
- Product Type
- Occupancy Sensor
Warranty
- Warranty
- 5-Year Limited
