Leviton MT830-ILG
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

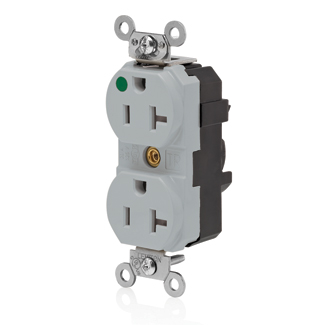

Lev-Lok Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Illuminated, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray Mating Lev-Lok Wiring Module Required for Use Calculate Time & Money Saved with the Lev-Lok Savings Calculator!Lev-Lok Duplex Receptacle
Leviton MT830-ILG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
Electrical Specifications
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Self-Grounding
- Illumination
- 100,000 HR Green LED's
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 125 VAC
- Wire
- 3
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Ground Clips
- Brass
- Line Contacts
- 0.040" Brass
- Locking Pins
- Solid Brass
- Shutter Mechanism
- Delrin® Acetal
- Strap Material
- Nickel Plated Brass
Mechanical Specifications
- Lead Identification
- Leads identified in accordance with UL 498 (black, white & green)
- Product ID
- Markings are permanently marked on device
- Termination
- Modular
Product Features
- Brand
- Lev-Lok
- Color
- Gray
- Device Type
- Duplex Receptacle Outlet
- Feature
- Tamper-Resistant|Illuminated|Smooth Face
- Grade
- Extra Heavy-Duty Hospital Grade
Specifications
- Country of Origin
- Mexico
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA
- 152105
- NEMA
- WD-6
- NOM
- 057
- RoHS
- Compliant
- UL 498 & Fed Spec WD496
- E13399
- Warranty
- 10-Year Limited
