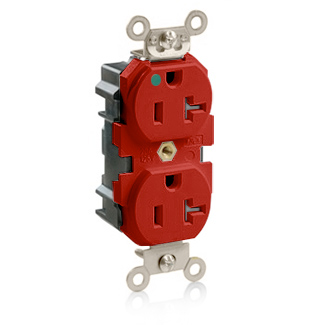

Leviton M8300-SGR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Lev-Lok Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Red Mating Lev-Lok Wiring Module Required for Use Calculate Time & Money Saved with the Lev-Lok Savings Calculator!Lev-Lok Duplex Receptacle
Leviton M8300-SGR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
Electrical Specifications
- Amperage
- 20 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Self-Grounding
- Maximum Working Voltage
- 125V as rated
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 125 VAC
- Wire
- 3
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Base Material
- Nylon
- Bushing
- Solid Brass
- Cover Material
- Nylon
- Ground Clips
- Nickel-Plated Brass
- Line Contacts
- 0.040” Thick Solid Brass
- Locking Pins
- Solid Brass
- Mounting Screws
- Triple Combination Head, Steel
- Mounting Strap
- Single Piece Nickel-Plated Brass with integral ground contact
- Shutter Mechanism
- Delrin® Acetal
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Termination
- Modular
Product Features
- Brand
- Lev-Lok
- Color
- Red
- Device Type
- Duplex Receptacle Outlet
- Feature
- Tamper-Resistant|Smooth Face
- Grade
- Extra Heavy-Duty Hospital Grade
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- ANSI
- C-73
- cULus
- Listed
- NEMA
- WD-1 & WD-6
- NOM Certified
- 057
- Warranty
- 10-Year Limited
