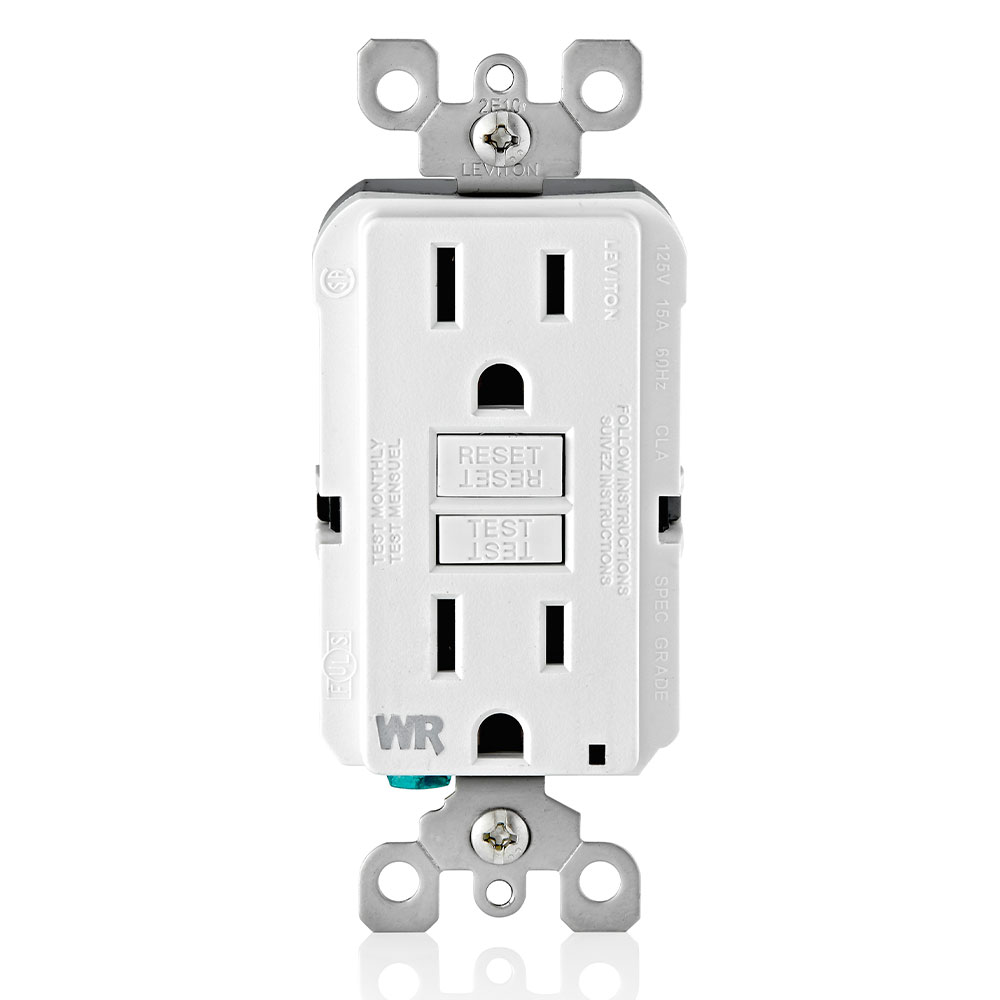

Leviton GFWR1-W
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather-Resistant GFCI, Monochromatic, back and side wired, wallplate/faceplate sold separately - White15 Amp SmartlockPro® GFCI Receptacle/Outlet, Weather-Resistant
Leviton GFWR1-W is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
Environmental Specifications
- Operating Temperature
- -35C to +66C
Material Specifications
- Clamps
- Brass
- Grounding Screw
- Stainless Steel
- Line Contacts
- Brass Double Wipe .031 Thick
- Notes
- Wallplate Sold Separately
- Terminal Screws
- Stainless Steel
- Weather Resistant
- Yes
- Yoke
- Stainless Steel
Mechanical Specifications
- Amperage
- 15 A
- Body Material
- Polycarbonate
- Brand
- SmartlockPro
- Color
- White
- Face Material
- Polypropylene
- Feature
- Self-Test
- Grade
- Residential/Commercial Specification Grade
- Grounding
- Green Ground Screw
- NEMA
- 5-15R
- Pole
- 2
- Product ID
- Ratings and Catalog No. molded into face and stamped into shroud
- Standards and Certifications
- UL/CSA, NEMA WD6, NEMA WD1
- Strap Material
- Stainless Steel
- Tamper Resistant
- No
- Terminal Accom.
- 14-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back & Side
- Trip Level
- Class A, 5mA plus or minus 1mA
- Type
- Weather-Resistant GFCI
- Voltage
- 125 VAC
- Wallplate
- Not Included
- Warranty
- 2-Year Limited
- Wire
- 3
Specifications
- Country of Origin
- China
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- Fed Spec WC-596
- Yes
- MIL-SPEC
- A-A-55459-SB
- NOM
- Yes
- UL498
- Yes
- UL 943
- File E48380
