Description

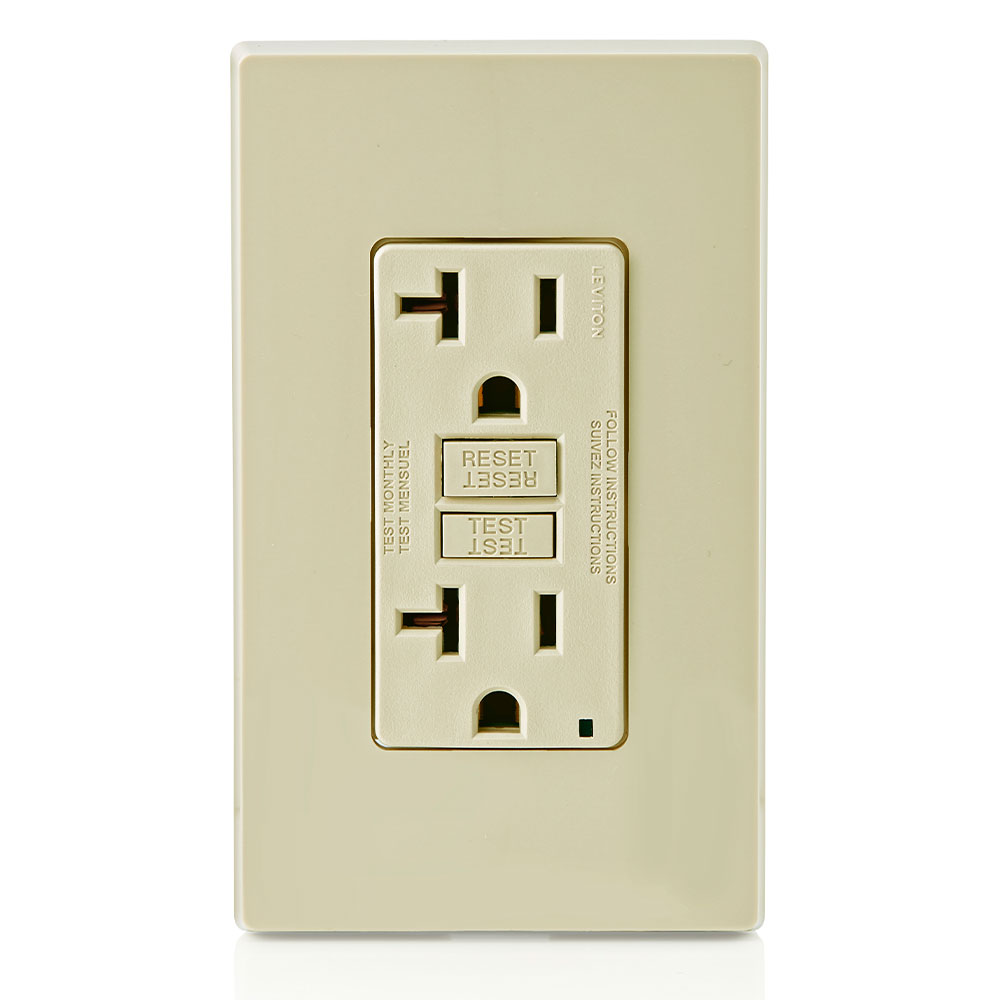

20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, Residential/Commercial applications, back and side wired, heavy duty, wallplate/faceplate and self grounding clip included - Ivory20 Amp SmartlockPro® GFCI Receptacle/Outlet
Leviton GFNT2-I is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
Environmental Specifications
- Operating Temperature
- -35C to +66C
Material Specifications
- Clamps
- Brass
- Grounding Screw
- Plated Steel
- Line Contacts
- Brass Double Wipe .031 Thick
- Terminal Screws
- Plated Steel
- Yoke
- Zinc-Plated Steel
Mechanical Specifications
- Amperage
- 20 A
- Body Material
- Polycarbonate
- Brand
- SmartlockPro
- Color
- Ivory
- Face Material
- Thermoplastic
- Feature
- Self-Test
- Grade
- Residential/Commercial Specification Grade
- Grounding
- Self-Grounding
- NEMA
- 5-20R
- Notes
- w/ Wallplate
- Pole
- 2
- Product ID
- Ratings are permanently marked on device
- Standards and Certifications
- UL/CSA, NEMA WD6
- Strap Material
- Galvanized Steel
- Tamper Resistant
- No
- Terminal Accom.
- 14-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back & Side
- Torque Range
- 14 – 18 in.-lbs
- Trip Level
- Class A, 5mA plus or minus 1mA
- Type
- Standard Duplex
- Voltage
- 125 VAC
- Warranty
- 2-Year Limited
- Wire
- 3
Product Features
- Wallplate
- Included
Specifications
- Country of Origin
- China
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- CSA C22.2 No. 42
- Yes
- Fed Spec WC-596
- Yes
- MIL-SPEC
- A-A-55459-SB
- NOM
- Yes
- UL498
- Yes
