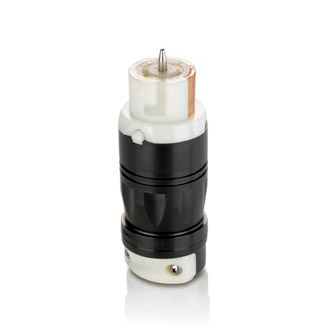

Leviton CS8264C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
50Amp, 250V AC, Non-NEMA, 2P, 3W, Black & White Locking Connector, Industrial Grade, Grounding, California-Style(CS) – BLACK-WHITE50 Amp locking Connector, Black & White
Leviton CS8264C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 50 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Grounding
- Grounding
- Maximum Working Voltage
- 250V as rated
- Pole
- 2
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Voltage
- 250 VAC
- Wire
- 3
Environmental Specifications
- Environment
- Dry
- Flammability
- Rated HB or better UL94
Material Specifications
- Assembly Screws
- Brass
- Cable Clamp Screw
- Philips Head, SS 304
- Dust Shield
- Santoprene TPE
- Face Module
- Nylon
- Ground Post
- Brass
- Ground Shunt
- Bronze
- Housing Material
- Nylon
- Plug Blade
- 0.1000inch thick Brass
- Plug Blade Shroud
- SS 302/304
- Standard Cable Clamp
- Nylon
- Terminal Block
- 0.062inch thick Copper
- Terminal Set Screw
- SS 302/304
- Wiring Chamber
- Nylon
Mechanical Specifications
- Cord Range
- .680 - 1.125
- Product ID
- Ratings and Catalogue No. molded into face and stamped into shroud
- Terminal ID
- X, W, Y, Z and Green for ground
- Torque Range
- allen wrench to 35 inch-lbs
Product Features
- Brand
- Black and White
- Color
- Black-White
- Device Type
- Locking Connector
- NEMA
- Non-NEMA
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- NOM
- 057
- RoHS
- Compliant
- UL 498
- File E13399
- Warranty
- Limited Lifetime Warranty
