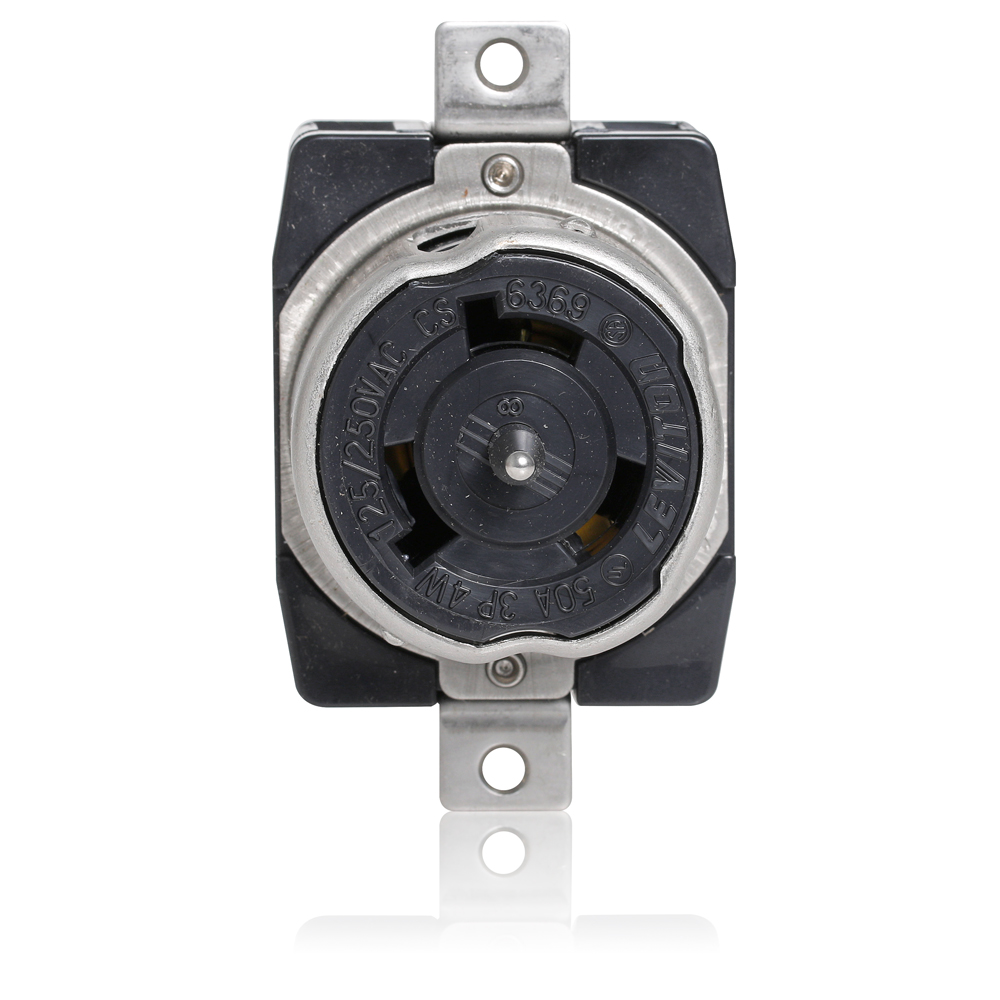

Leviton CS6369
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK50 Amp Locking Flush Mount Receptacle, Black & White
Leviton CS6369 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 50 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Grounding
- Grounding
- Maximum Working Voltage
- 125/250V as rated
- Pole
- 3
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Voltage
- 125/250 VAC
- Wire
- 4
Environmental Specifications
- Environment
- Dry
- Flammability
- Rated HB or better UL94
- Operating Temperature
- -40°C to 75°C
Material Specifications
- Assembly Rivets
- SS 302/304
- Back Cover
- Reinforced Nylon
- Body & Contract Carrier
- Reinforced Nylon
- Body Material
- Impact Modified Nylon
- Box Terminal
- 0.062inch thick Copper
- Center Pin
- SS 302/304
- Connector Contact - Binding Plate
- 0.100inch thick Brass
- Connector Contact - Spring
- 0.041inch thick Brass
- Contact Rivet
- Brass
- Face Module
- Reinforced Nylon
- Mounting Screws
- SS 302/304
- Mounting Strap
- Single piece SS 302/304
- Shroud
- .062inch thick Nickel Plated Steel
- Terminal Set Screw
- SS 302/304
Mechanical Specifications
- Product ID
- Ratings and Catalogue No. molded into face
- Terminal Accom.
- #10min to #6max AWG Solid or Stranded Wire (Stranded Wire for Ground only)
- Terminal ID
- X, W, Y, Z and Green for ground
Product Features
- Brand
- Black and White
- Color
- Black
- Device Type
- Locking Receptacle
- NEMA
- Non-NEMA
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- NOM
- 057
- RoHS
- Compliant
- UL 498
- File E13399
- Warranty
- Limited Lifetime Warranty
