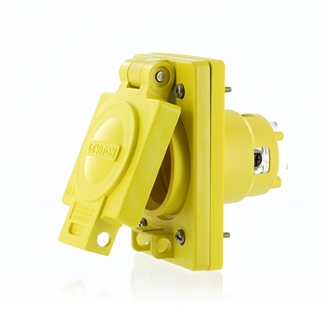

Leviton 99W75-S
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
30 Amp, 250 Volt 3-phase, NEMA L15-30, 3P, 4W, Locking Single Outlet, Industrial Grade, Grounding, Wetguard - YELLOWWetguard Watertight Locking Outlet
Leviton 99W75-S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 30 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Grounding
- Phase
- 3-Phase
- Pole
- 3
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 250 VAC
- Wire
- 4
Environmental Specifications
- Enclosure Rating
- NEMA 4, 4X, 12 IEC IP66
- Environment
- Wet
- Flammability
- Rated V-2 per UL 94 (wiring module)
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Blades/Contacts, Terminal Clamps
- Electroless Nickel-coated Brass
- Cover Gasket
- Santoprene TPV
- Cover/Lid
- Valox PBT
- Mounting & Assembly Screws
- Stainless steel, non-magnetic
- Terminal Screws
- Electroless Nickel-coated Brass
- Torsion Spring Mechanism
- Stainless Steel
- Wiring Module
- Nylon
- Wiring Module Mounting Cup
- Valox PBT
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Screw Terminal Torque
- 12-14 in-lbs
- Terminal Accom.
- #12 AWG to #8 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 10-12 in-lbs
Product Features
- Brand
- Wetguard
- Color
- Yellow
- Device Type
- Locking Outlet
Specifications
- Country of Origin
- Mexico
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA
- C22.2 No. 42
- NEMA
- WD-6
- NOM
- 057
- UL
- 498
