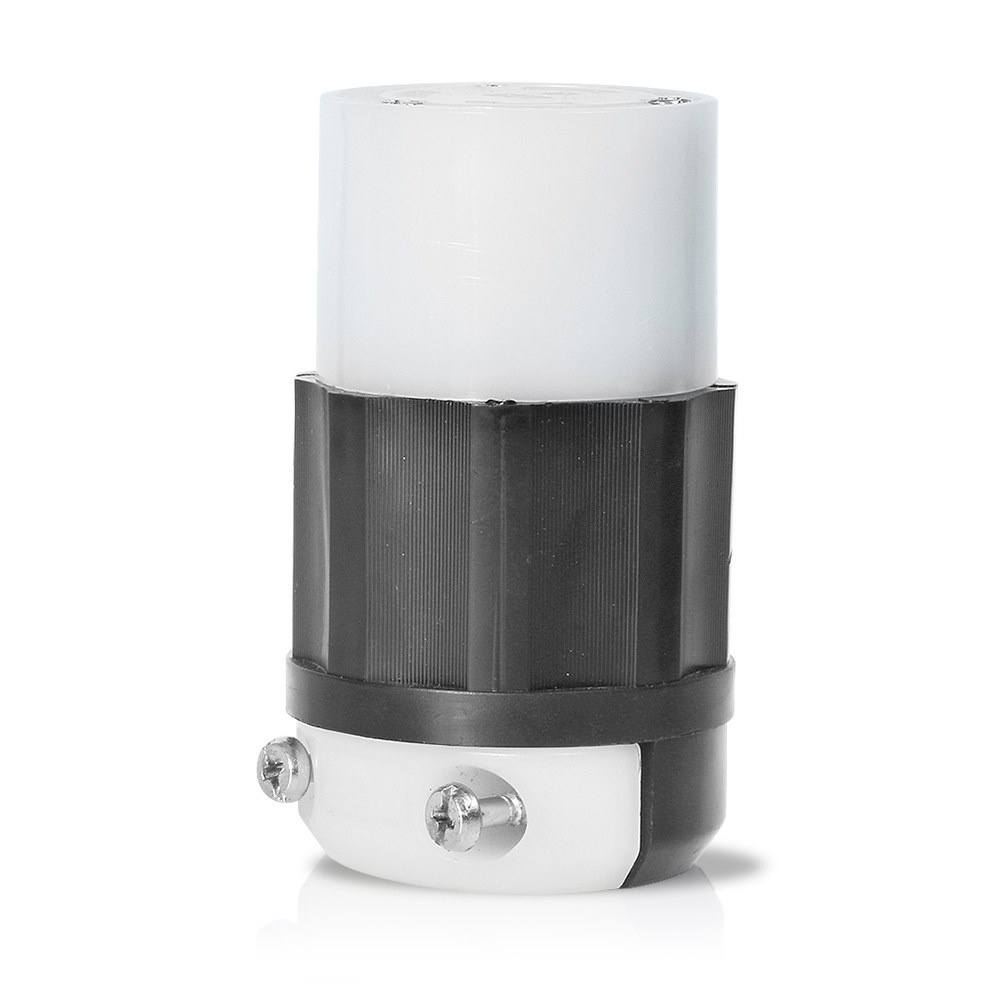

Leviton 7314-C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
20 Amp, 125/250 Volt, Non-NEMA, 3P, 3W, Locking Connector, Industrial Grade, Non-Grounding - BLACK-WHITELocking Connector, 20 Amp, 125/250 Volt, Industrial Grade, Black & White
Leviton 7314-C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Environmental Specifications
- Environment
- Dry
- Flammability
- Rated HB or better UL94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Back Cover
- Thermoplastic
- Blades/Contacts
- Solid Brass
- Body Material
- Impact Modified Nylon
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Terminal Screws
- Brass
- Wire Module
- Nylon
Mechanical Specifications
- Amperage
- 20 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Non-Grounding
- Pole
- 3
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Temperature Rise
- Max 30C at 250 cycles OL at 200 pct rated current
- Terminal Accom.
- 18-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 10-14 in-lbs
- Voltage
- 125/250 VAC
- Wire
- 3
Product Features
- Brand
- Black and White
- Color
- Black-White
- Cord Range
- 0.385 to 0.720
- Wire Gauge
- 14-10 AWG
Specifications
- Country of Origin
- Mexico
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 42
- File LR-406
- NEMA
- WD-6
- NOM
- 057
- UL498
- File E13393
- Warranty
- Limited Lifetime Warranty Warranty
