Description

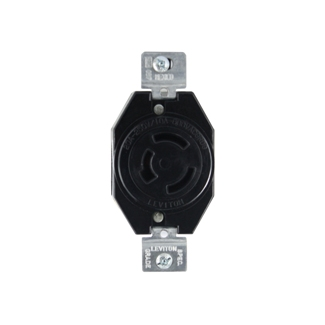

Leviton’s line of Extra Heavy-Duty Industrial Grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.20 Amp, 125/250 Volt, Non-NEMA, 3P, 3W, Flush Mounting Locking Receptacle, Industrial Grade, Grounding - BLACK
Leviton 7310-BG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Grounding
- Pole
- 3
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 125/250 VAC
- Wire
- 3
Environmental Specifications
- Environment
- Dry
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Base Material
- Nylon
- Face Material
- Nylon
- Grounding Screw
- Brass 8-32
- Line Contacts
- Brass .040 Thick
- Strap Material
- Nickel-Plated Brass
- Terminal Screws
- Brass 10-32
- Yoke
- Nickel-Plated Brass .050 Thick
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back & Side
Product Features
- Color
- Black
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 42
- File LR-406
- NEMA
- WD-6
- NOM
- 057
- UL498
- File E13399
- Warranty
- Limited Lifetime Warranty Warranty
