Description

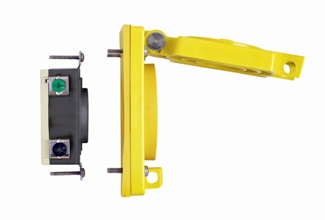

30 Amp, 480 Volt 3-Phase, NEMA L16-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, Wetguard w/Cover - YELLOWWetguard Watertight Flip Lid Single Locking Receptacle
Leviton 69W76 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- At Rated Voltage
- 10 HP
Electrical Specifications
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
Environmental Specifications
- Environment
- Wet
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Grounding Screw
- Brass 8-32
- Line Contacts
- Brass .040 Thick
- Terminal Screws
- Brass 10-32
- Yoke
- Nickel-Plated Brass .050 Thick
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Product Features
- Amperage
- 30 A
- Base Material
- Nylon
- Brand
- Wetguard
- Color
- Yellow
- Device Type
- Locking Outlet
- Face Material
- Nylon
- Grounding
- Grounding
- Pole
- 3
- Standards and Certifications
- UL/CSA
- Strap Material
- Nickel-Plated Brass
- Termination
- Back
- Voltage
- 480 VAC
- Warranty
- Limited Lifetime Warranty
- Wire
- 4
Specifications
- Country of Origin
- Mexico
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 42
- File LR-406
- NEMA
- WD-6
- NOM
- 057
- UL498
- File E13399
- UL Fed Spec WC-596
- File E13399
