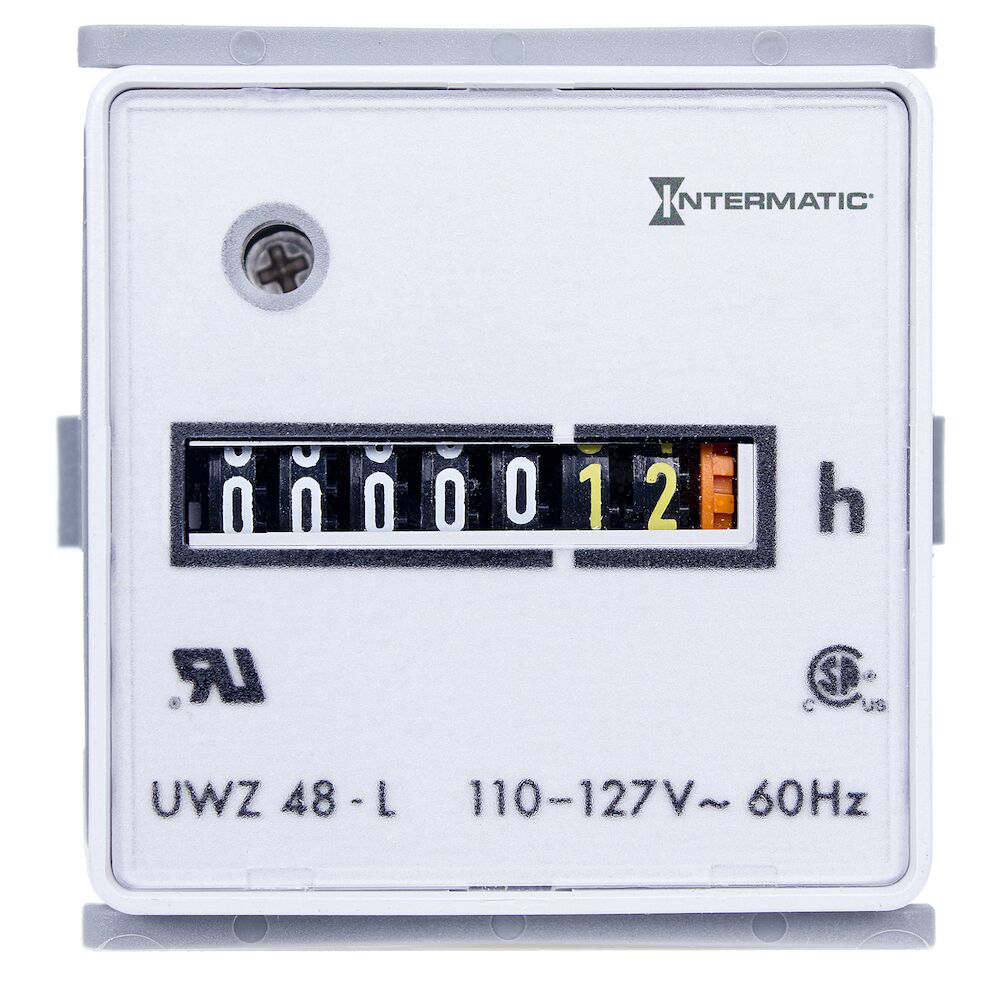

Intermatic UWZ48E-240
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Flush mounted with bracket, the UWZ48E unit fits into a 1.79" x 1.79" (45.5 x 45.5 mm) cutout. The thickness of the panel for flush mounting can be up to .35" (9 mm). The unit is secured in position by a plastic slip-on retaining bracket. The unit also fits square or round openings for 72 mm with optional 72 mm bezel.AC Hour Meter
Intermatic UWZ48E-240 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Applications
- Monitoring; Distribution/Control Panel
- Bezel Height
- 1.89 in
- 48 mm
- Bezel Width
- 48 mm
- 1.89 in
- Color
- Light Gray
- Country of Origin
- Germany
- CSA Certification
- cCSAus
- Digits Coloring Hours
- White on Black
- Digits Coloring Tenths
- Yellow on Black
- Digits Height
- 0.16 in; 4.1 mm
- Hour Meter Capacity
- 99999.99
- Hour Meter Environment Rating
- IP20
- Hour Meter Material
- Plastic
- Hour Meter Mechanical Movement
- Synchronous
- Input Voltage Ranges
- 240 VAC, 60 Hz
- Lifecycle
- Production
- Market
- Commercial; Industrial
- Mounting Depth
- 33 mm
- 1.3 in
- Mounting Description
- slip-on retaining bracket
- Mounting Options
- Flush
- Number Of Digital Tenths
- 2
- Number Of Digits Hours
- 5
- Operating Temperature Max
- 160°C
- 72°F
- Operating Temperature Min
- -40°C
- -40°F
- Ordering Instructions
- UWZ48E+240
- Other Certifications
- RU; CE
- Packaging Applications
- Industrial Control Panels; Pumps; Machinery; Heaters
- Panel Opening Height
- 48 mm
- Panel Opening Heigh tIn
- 1.79 in
- Panel Opening Width
- 1.79 in
- 48 mm
- Power Consumption Max
- 1 VA
- Product Depth
- 1.65 in; 49 mm
- Product Height
- 2.13 in; 54 mm
- Product Width
- 1.89 in; 48 mm
- RoHS Certification
- Yes
- Solutions
- Heating; Irrigation; Water Treatment; Panel Integrators
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 4590
- Warranty Period
- 1-Year limited
- Wiring Option
- 1/4" Spade w/screw clamp
