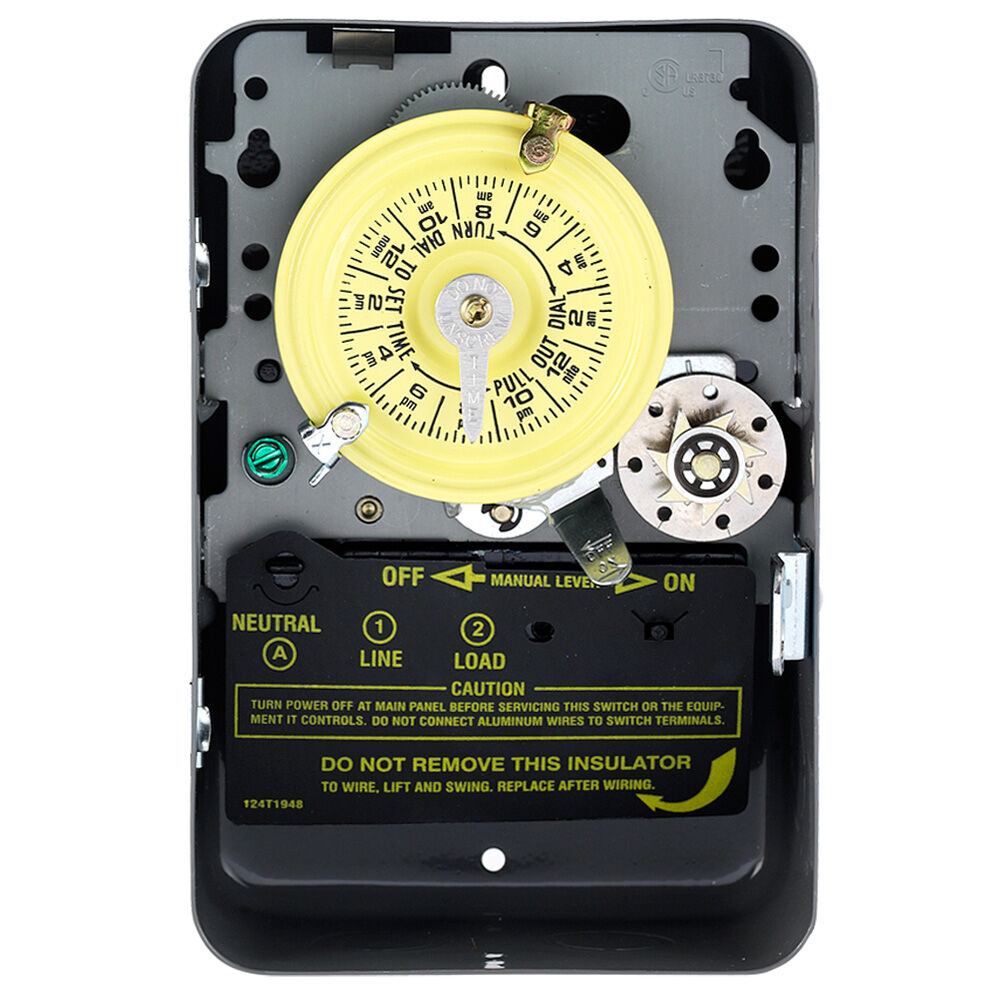

Intermatic T172
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.24-Hour Mechanical Time Switch with Skip-a-Day, 208-277 VAC, 60Hz, SPST, Indoor Metal Enclosure, 1 Hour Interval
Intermatic T172 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Electronic Ballast Load Ratings
- 16 A, 277 VAC, 60 Hz
- Electronic Ballast Load Ratings Ranges
- 16 A, 277 VAC, 60 Hz
- Inductive Load Ratings
- 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Inductive Load Ratings Ranges
- 40 A, 120-277 VAC, 60 Hz
- Motor Load Ratings
- 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
- Pilot Duty Load Ratings
- 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz
- Resistive Load Ratings
- 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Resistive Load Ratings Ranges
- 40 A, 120-277 VAC, 60 Hz
- Tungsten Load Ratings
- 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz
- Tungsten Load Ratings Ranges
- 40 A, 120-277 VAC, 60 Hz
Specifications
- Application Compatibilities
- LED; HID
- Applications
- Timing/Scheduling ON/OFF; Indoor Lighting Control
- Country of Origin
- Mexico
- CSA Certification
- cCSAus
- Enclosure Type
- Indoor type 1 metal
- Has Manual Override CVL
- Yes
- Input Voltage Ranges
- 208-277 VAC, 60 Hz
- Lifecycle
- Production
- Market
- Commercial; Industrial
- Maximum On Off Operations
- 10
- Minimum On Off Time
- 1 hour
- Number Of Circuits
- 1
- Operating Temperature Max
- 54°F
- 130°C
- Operating Temperature Min
- -40°C
- -40°F
- Operation Mode
- 24 hour
- Other Certifications
- LED
- Packaging Applications
- Indoor/Outdoor Lighting; Pool Heaters; Pumps; Blowers; Conveyors; Electric Fences; Fans; Filters; Signs; Various Other Electrical Loads; Commercial; Industrial; Residential
- Pilot Duty Load Ratings Ranges
- 1000 VA, 120-277 VAC, 60 Hz
- Power Consumption Max W
- 3 W
- Product Depth
- 3.4375 in; 87.3 mm
- Product Height
- 7.875 in; 200 mm
- Product Width
- 5.125 in; 130.2 mm
- Skipper Wheel Operation Mode
- Not Included
- Solutions
- Machinery & Pumps; Panel Integrators
- Switch Type
- SPST
- UL Cerfication File Number
- UL916
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 288
- Warranty Period
- 1-Year limited
- Wire Size Max
- #8 AWG
- Wire Size Min
- #14 AWG
- Wiring Option
- Terminals
