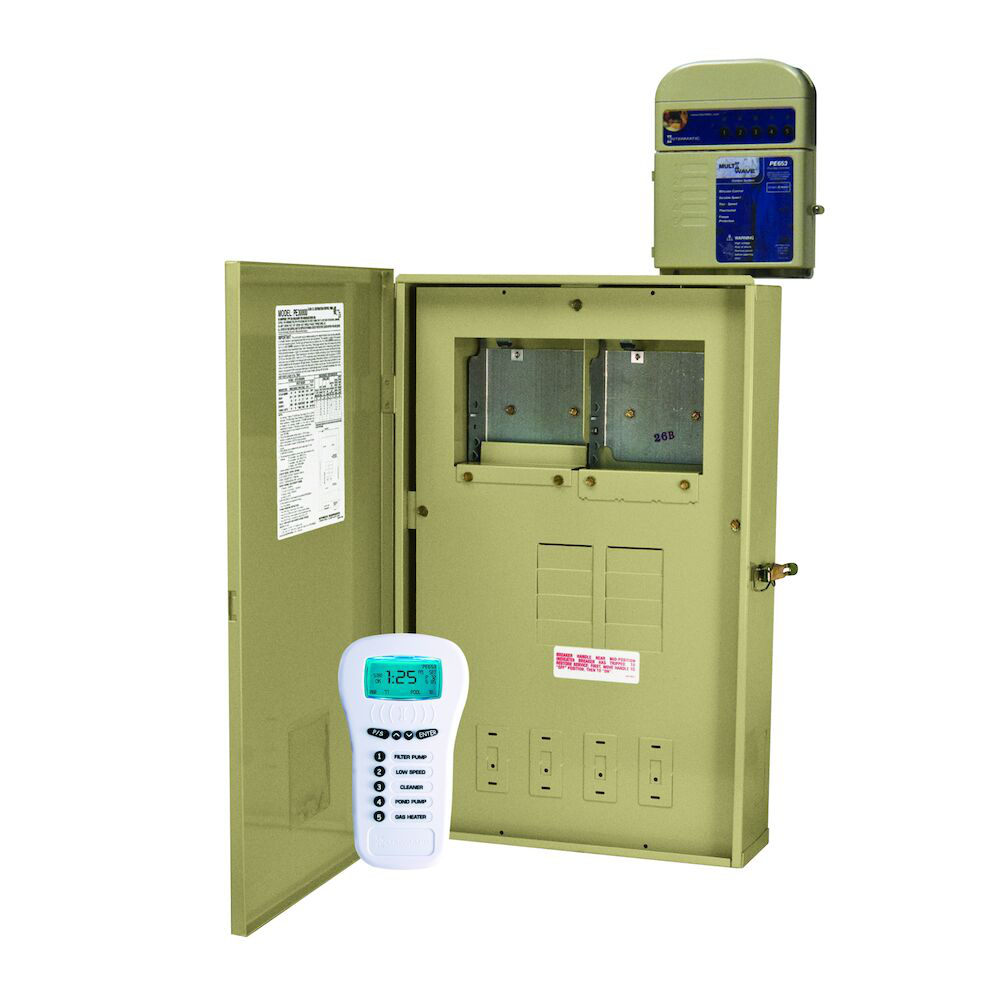

Intermatic PE30065RC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
A wireless electronic controller for pool or spa automation. Retrofit existing mechanical timers or install with new construction. Has an 80 A load center.24-Hour MultiWave® Basic Control , 5-Circuit, 80 A Load Center, Type 3R Metal Enclosure
Intermatic PE30065RC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Knockout
- Knockout Dimensions Back
- (4) combination 1/2" - 3/4", and (2) combination 3/4" - 1"
- Knockout Dimensions Bottom
- (1) 1 1/8" diameter hole, (6) combination 1/2" - 3/4", (4) 1/2", (2) combination 1 1/8" - 1 3/8" - 1 11/16"
- Knockout Dimensions Left
- (2) combination 1/2" - 3/4"
- Knockout Dimensions Right
- (1) 1 3/4" x 2 3/4" for mounting switches or GFCI
- Number Of Receptacle Switch Knockouts
- 4
Load Ratings
- Motor Load Ratings
- 80 LRA @ 120 VAC, 50 Hz; 80 LRA @ 240 VAC, 50 Hz; 17 FLA @ 120 VAC, 50 Hz; 17 FLA @ 240 VAC, 50 Hz; 80 LRA @ 120 VAC, 60 Hz; 80 LRA @ 240 VAC, 60 Hz; 17 FLA @ 120 VAC, 60 Hz; 17 FLA @ 240 VAC, 60 Hz
- Motor Load Ratings Circuits 2 to 5
- 60 LRA @ 120 VAC, 50 Hz; 60 LRA @ 240 VAC, 50 Hz; 10 FLA @ 120 VAC, 50 Hz; 10 FLA @ 240 VAC, 50 Hz; 60 LRA @ 120 VAC, 60 Hz; 60 LRA @ 240 VAC, 60 Hz; 10 FLA @ 120 VAC, 60 Hz; 10 FLA @ 240 VAC, 60 Hz
- Resistive Load Ratings
- 20 A, 120 VAC; 20 A, 240 VAC
- Resistive Load Ratings Circuits 2 to 5
- 15 A, 120 VAC; 15 A, 240 VAC
- Tungsten Load Ratings
- 5 A
Specifications
- Applications
- Heater Thermostat Control; Motor Control; Pump Control
- Circuit 1 Motor Display
- 80 LRA @120/240 VAC; 17 FLA @120/240 VAC
- Circuit 1 Resistive Display
- 20 A
- Circuit 2 to 5 Motor Display
- 60 LRA @120/240 VAC; 10 FLA @120/240 VAC
- Circuit 2 to 5 Resistive Display
- 15 A
- Country of Origin
- China
- CSA Certification
- cCSAus
- Lifecycle
- Production
- Load Center Rating Display
- 80 A, 120/240 VAC or 120/208 VAC, Single Phase
- Load Center Ratings
- 80 A, 120 VAC; 80 A, 240 VAC; 80 A, 208 VAC, Single Phase
- Market
- Residential; Commercial
- Number Of Breaker Knockouts
- 8
- Number Of Circuits
- 5
- Other Certifications
- Title 20; Florida Energy Efficiency Code; Z-Wave
- Packaging Applications
- Pool or Spa Equipment; Single Body of Water; No Valve Rotation
- Product Depth
- 4.75 in; 120.7 mm
- Product Height
- 22.875 in; 581 mm
- Product Width
- 14.875 in; 377.8 mm
- Solutions
- Pool & Spa
- Transformer Input Voltage
- 120 VAC, 60 Hz
- Transformer Output Voltage
- 12, 13, 14 VAC
- Transformer W
- 300
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 9
- Warranty Period
- 2-Year limited
