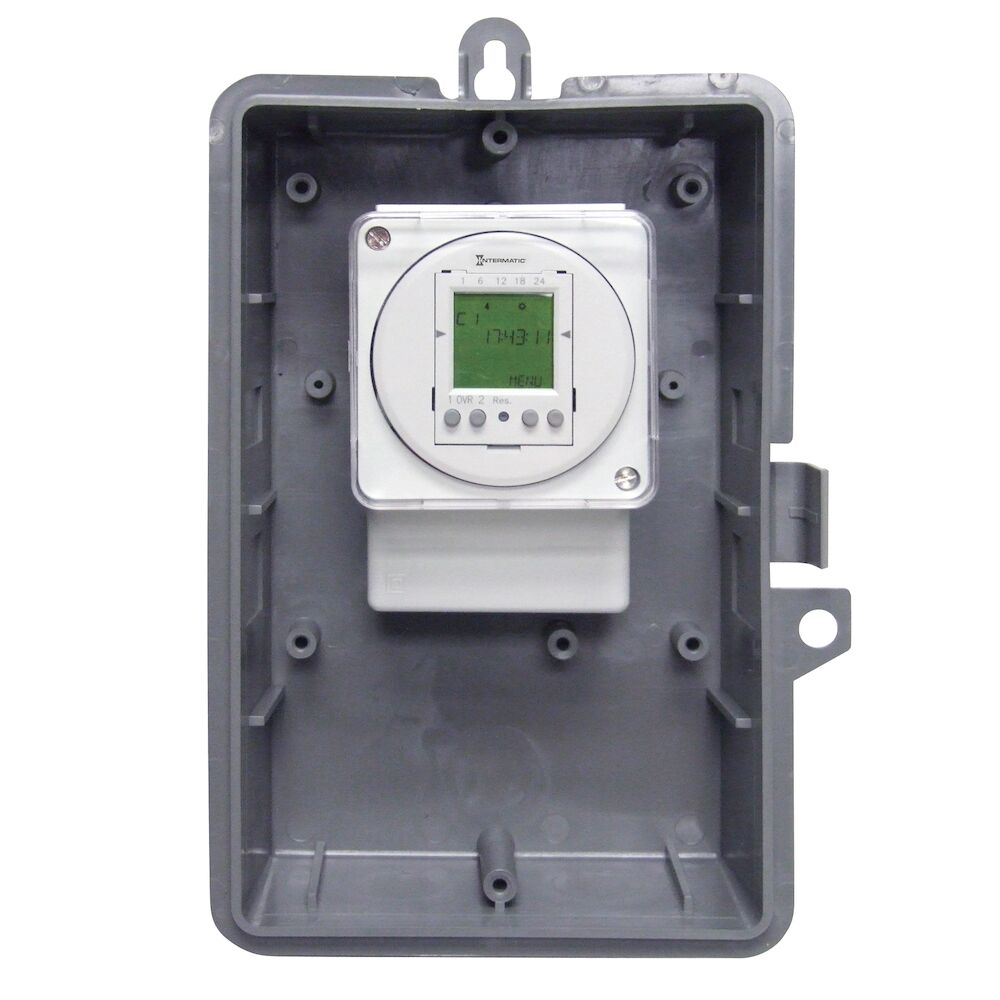

Intermatic GMXST-O-120
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The GMX series time switches are universal mechanical time switches. They are a low cost alternative for applications that do not require more than 21 A or 2 HP @ 240 VAC. The timer is mounted in a UL Type 1 indoor or Type 3R outdoor plastic enclosure. The GMX is a light-duty commercial time switch ideal for 24, 120 or 208/240 VAC single-phase general applications.24-Hour 120V Electromechanical Timer, 15 Minute Intervals, 21A, SPDT, Type 3R Outdoor Plastic Enclosure
Intermatic GMXST-O-120 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Motor Load Ratings
- 1 HP, 120 VAC; 2 HP, 250 VAC
- Resistive Load Ratings
- 21 A, 250 VAC, 60 Hz
- Tungsten Load Ratings
- 1350 W, 120 VAC, 60 Hz
Specifications
- Application Compatibilities
- Incandescent; Fluorescent; CFL; LED
- Applications
- Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising
- Backup Protection Time
- 7-Day
- Clock Drive Type
- Synchronous
- Country of Origin
- Mexico
- Enclosure Type
- Outdoor type 3R plastic
- Has Captive Trippers CVL
- Yes
- Has Finger Safe Terminals CVL
- Yes
- Has Override Switch CVL
- Yes
- Has Realtime Clock Face CVL
- Yes
- Input Voltage Ranges
- 120 VAC, 60 Hz
- Lifecycle
- Production
- Market
- Commercial; Industrial
- Maximum Cycle Time
- 24 hrs
- Minimum Cycle Time
- 15 min
- Mounting Options
- Wall
- Operating Humidity
- 0 to 95%, Non-condensing
- Operating Temperature Max
- 185°C
- 85°F
- Operating Temperature Min
- -40°C
- -40°F
- Packaging Applications
- Lighting Control; HVAC; Pumps/Motor/Fan Control; General Electrical Circuits; Commercial Refrigeration
- Power Consumption Max
- 1 VA
- Product Depth
- 3 3/4 in; 95 mm
- Product Height
- 10 in; 254 mm
- Product Width
- 6 1/2 in; 165 mm
- Shortest Switching Time
- ON/OFF 15 minutes
- Solutions
- Refrigeration; Ventilation; Water Treatment; Generator Exercising
- Switch Type
- SPDT
- Timing Interval
- 15 min
- UL Cerfication File Number
- E10694
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 198
- Warranty Period
- 1-Year limited
- Wire Size Max
- #12 AWG
- Wiring Option
- Screw terminal accepts up to #12 AWG wire
