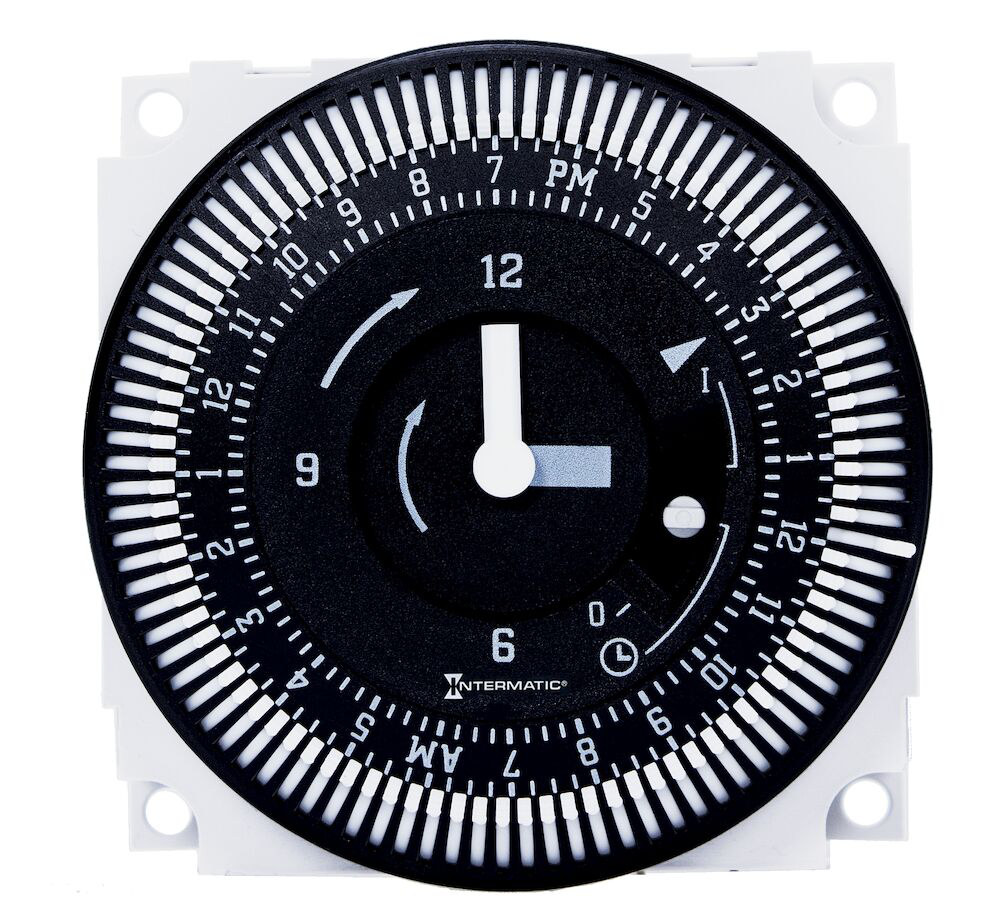

Intermatic FM1STUZH-240U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.24-Hour 208/240V Electromechanical Panel Mount Timer Module with Manual Override, 15 Minute Intervals, 21A, SPDT
Intermatic FM1STUZH-240U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Motor Load Ratings
- 1 HP, 120 VAC; 2 HP, 250 VAC
- Resistive Load Ratings
- 21 A, 250 VAC
- Tungsten Load Ratings
- 1350 W, 120 VAC
Specifications
- Application Compatibilities
- Incandescent; Fluorescent; CFL; LED
- Applications
- Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising
- Clock Drive Type
- Synchronous
- Country of Origin
- Mexico
- CSA Certification
- cCSAus
- Has Captive Trippers CVL
- Yes
- Has Override Switch CVL
- Yes
- Has Realtime Clock Face CVL
- Yes
- Input Voltage Ranges
- 208/240 VAC, 60 Hz
- Lifecycle
- Production
- Market
- Commercial; Industrial
- Maximum Cycle Time
- 24 hrs
- Minimum Cycle Time
- 15 min
- Mounting Options
- Panel
- Operating Humidity
- 0 to 95%, Non-condensing
- Operating Temperature Max
- 85°F
- 185°C
- Operating Temperature Min
- -40°C
- -40°F
- Other Certifications
- cRUus; CE
- Packaging Applications
- Commercial Refrigeration; Pool & Spa; Ventilation; Hot Water Pump Circulation; Hydroponic Systems; Lighting Panel Control; Landscape Lighting; Bug and Pest Control Systems; Aerobic Waste Water Systems
- Power Consumption Max
- 1 VA
- Product Depth
- 1 1/4 in; 32 mm
- Product Height
- 2 23/64 in; 60 mm
- Product Width
- 2 23/64 in; 60 mm
- Shortest Switching Time
- ON/OFF 15 minutes
- Solutions
- Refrigeration; Ventilation; Water Treatment; Generator Exercising
- Switch Type
- SPDT
- Timing Interval
- 15 min
- UL Cerfication File Number
- E10694
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 2002
- Warranty Period
- 1-Year limited
- Wiring Option
- 1/4" Quick connect terminals
